If you’re someone who likes to visualize different paths in your forms, we’ve got great news for you! You can now use the Logic Map as an interactive tool to create and modify logic, without having to leave the visual comfort of your map.

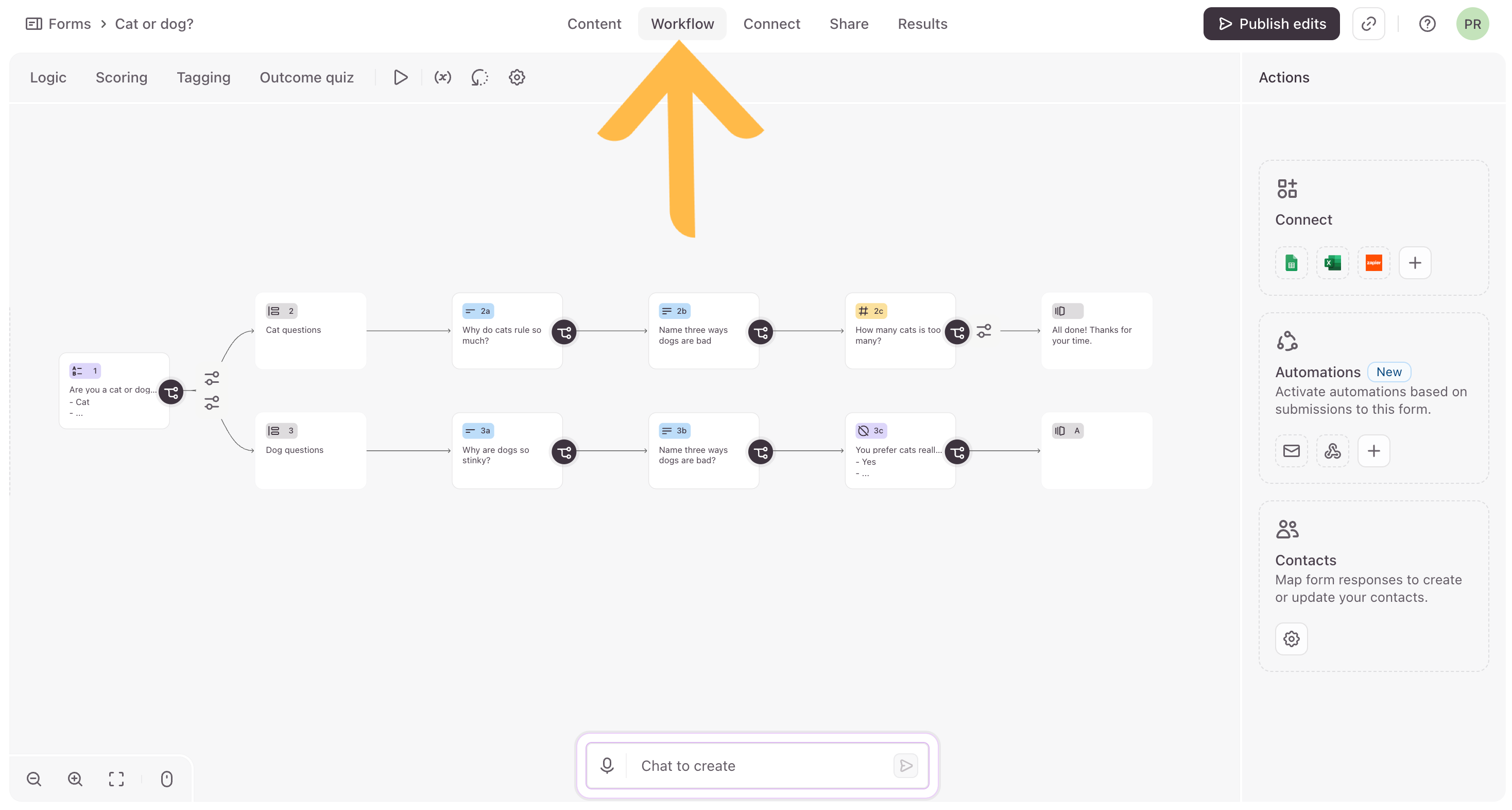

The Logic Map is a tool that lets you visualize the structure of logic paths in your form. To access it, open up a form, and click the Workflow tab.

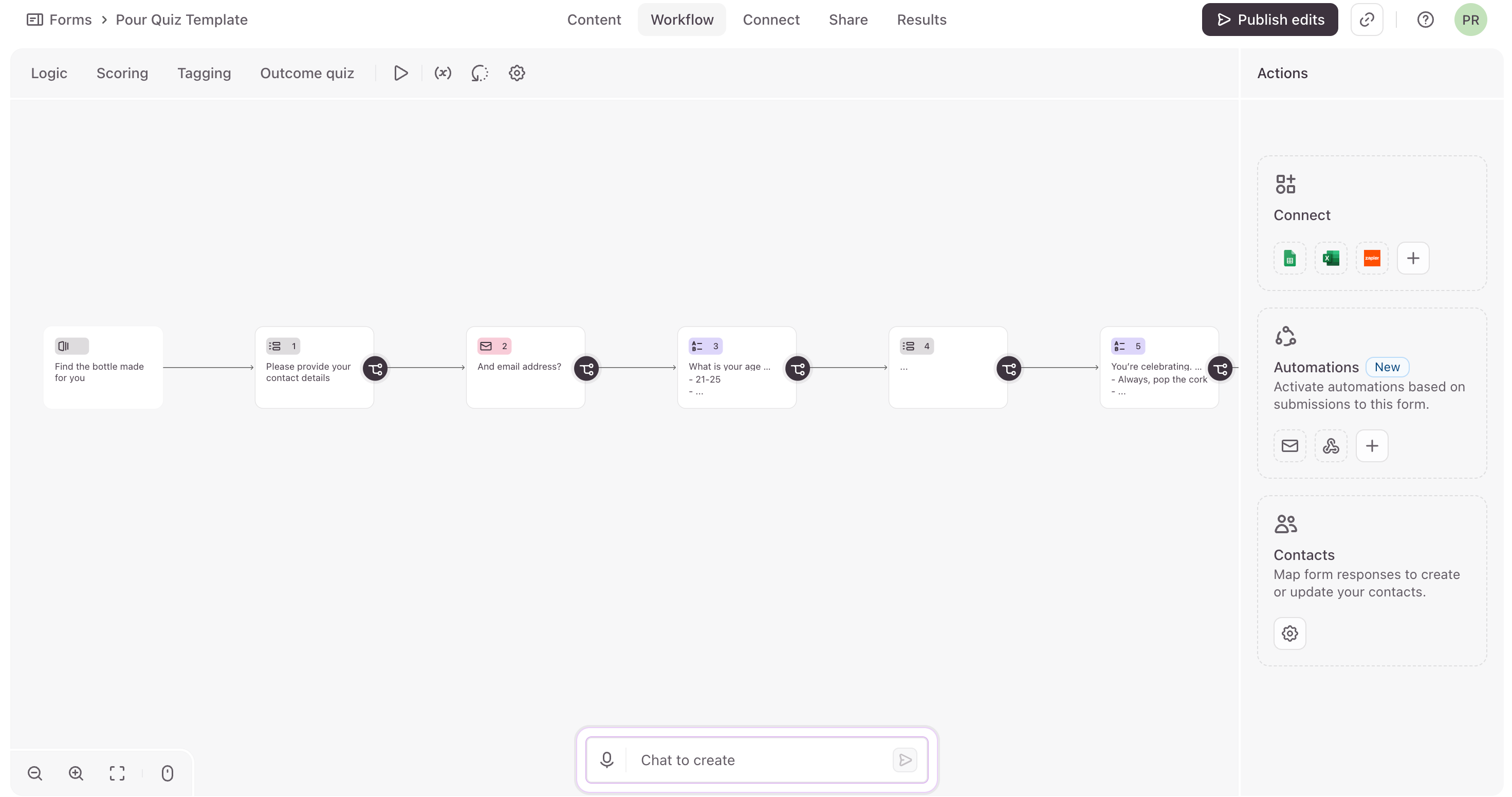

If your form doesn’t contain any logic yet, you’ll see your questions in a single line, from left to right, following the order of questions in your form.
You can check out the Logic Map scenarios article to see what the Logic Map of different scenarios might look like.
Add logic from the Logic Map.

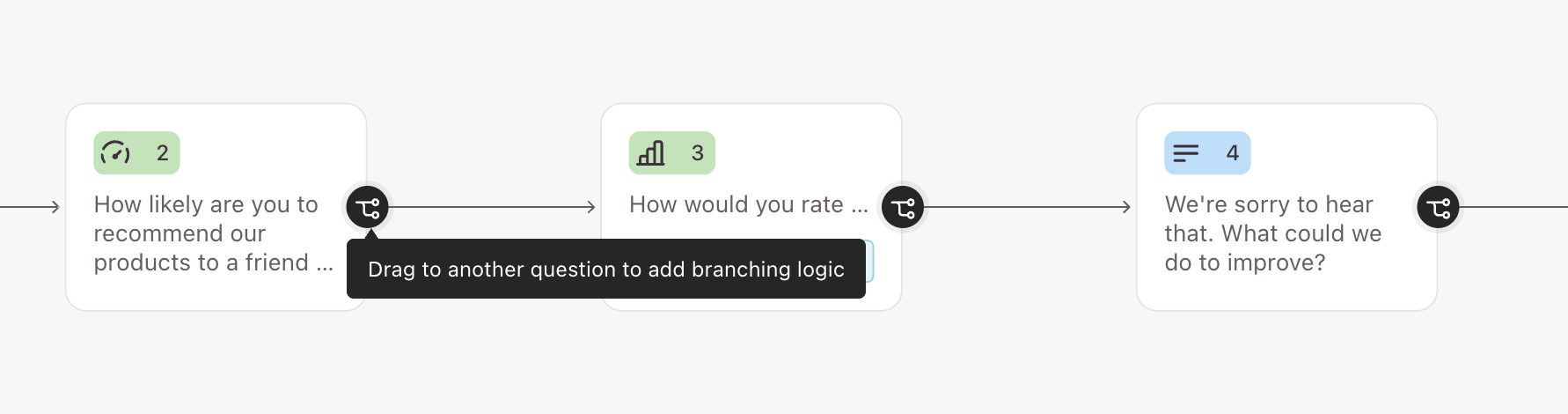

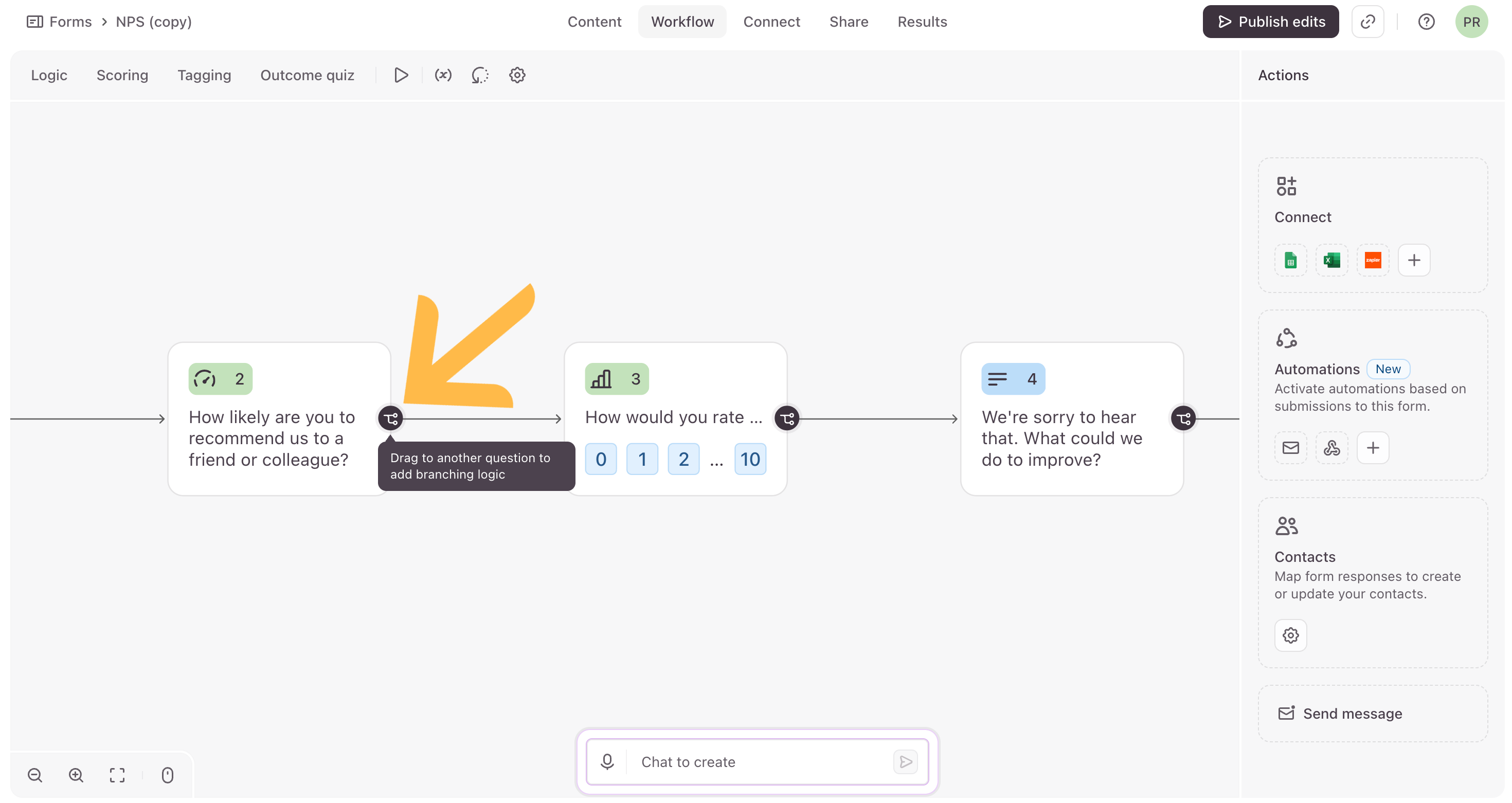

Click the black button and drag it to another question to add logic.

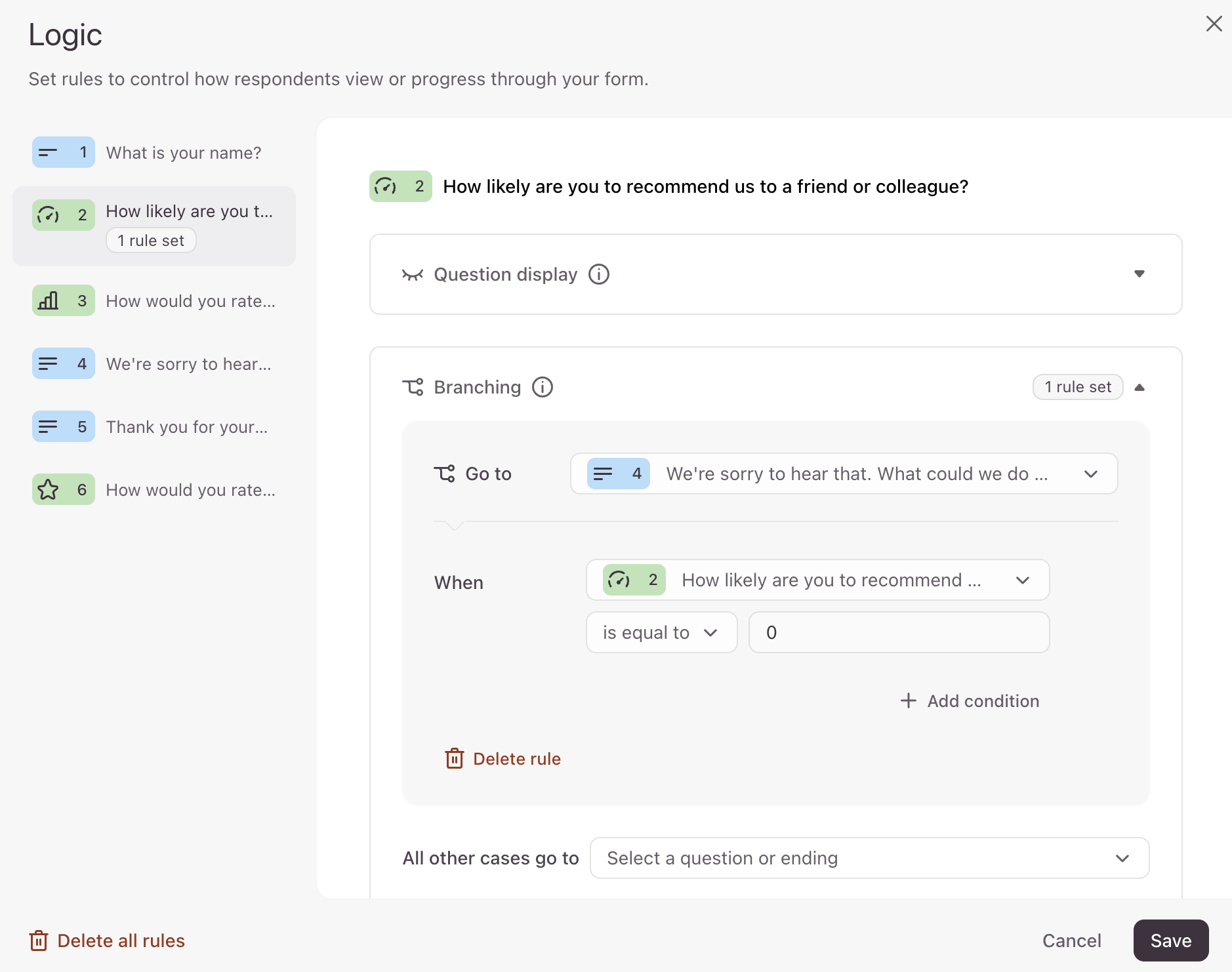

This will open up the logic editor where you can add rules.
In this example, we want to show different follow up questions to people based on the NPS® score they gave. People who gave a lower score will see a question where they can suggest ways to improve. We'll create the rule:

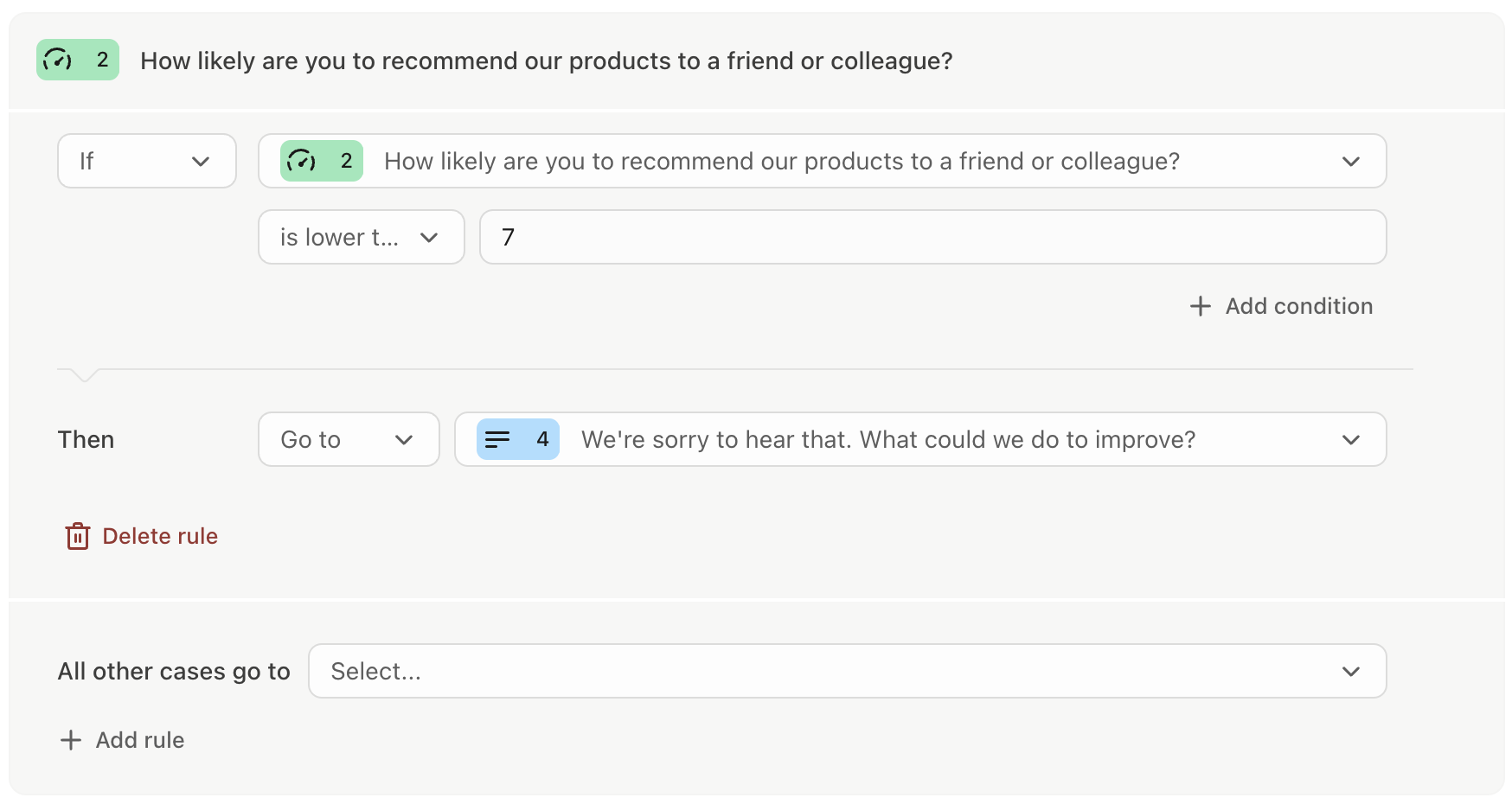

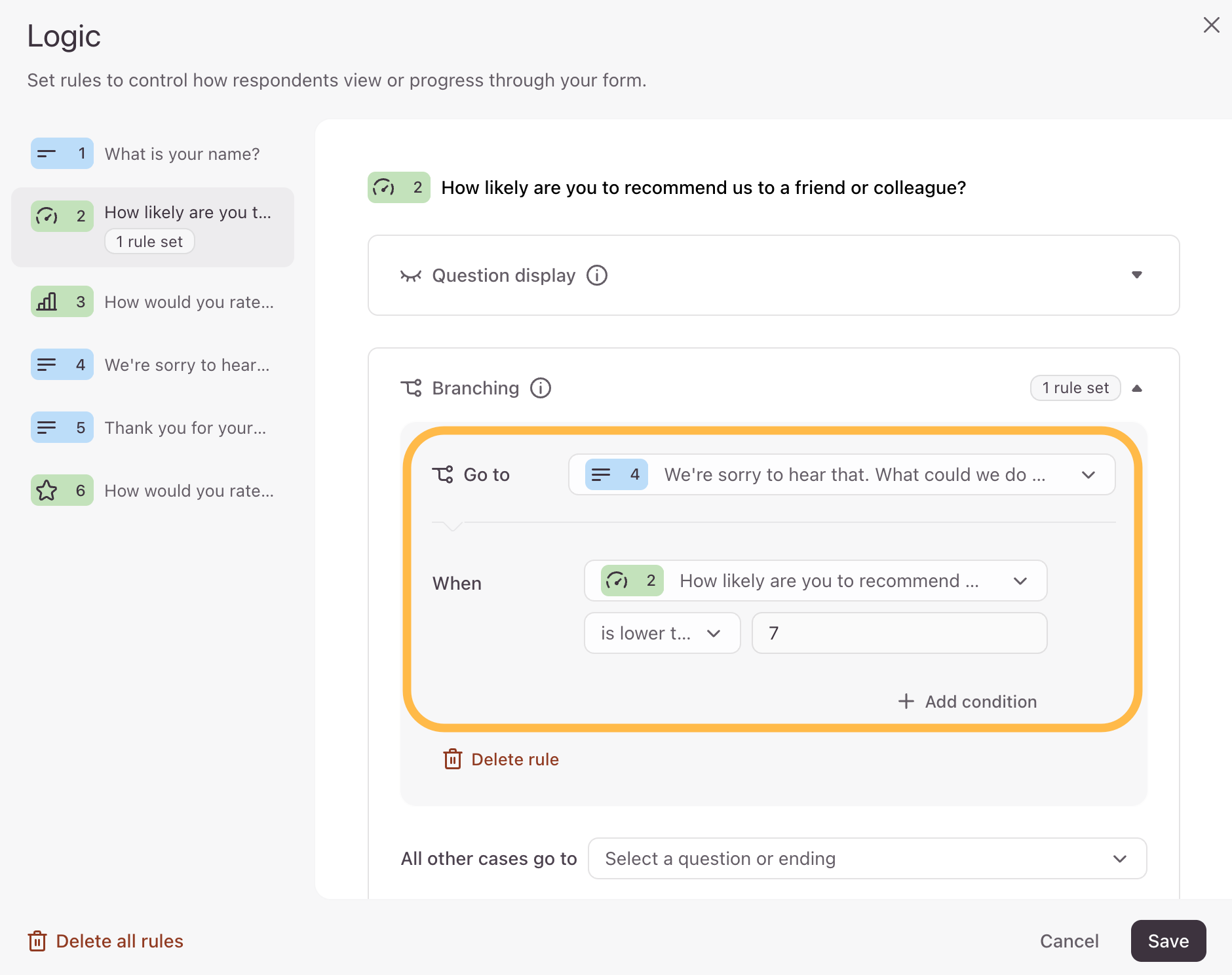

Go to question 4 when question 2 is lower than 7

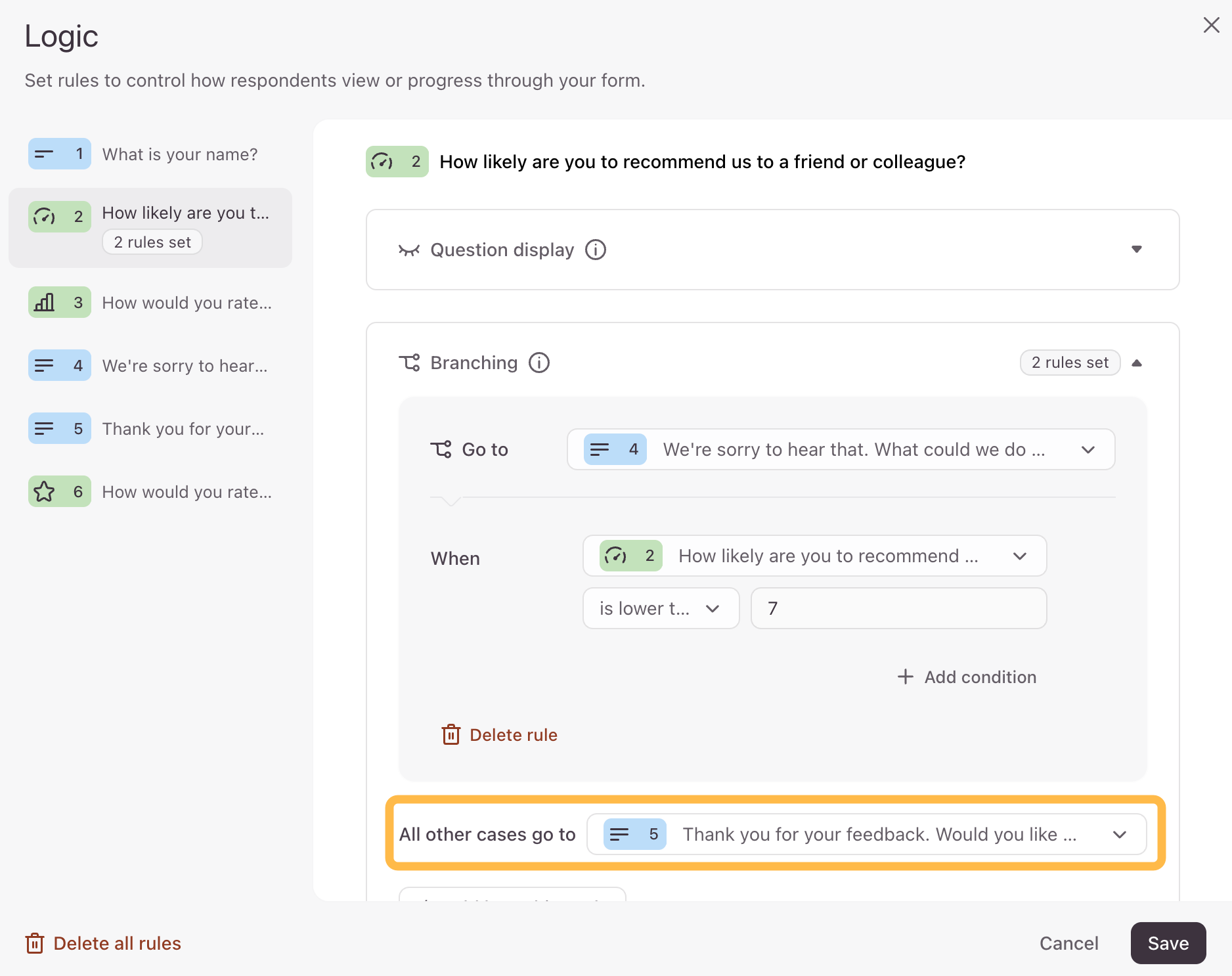

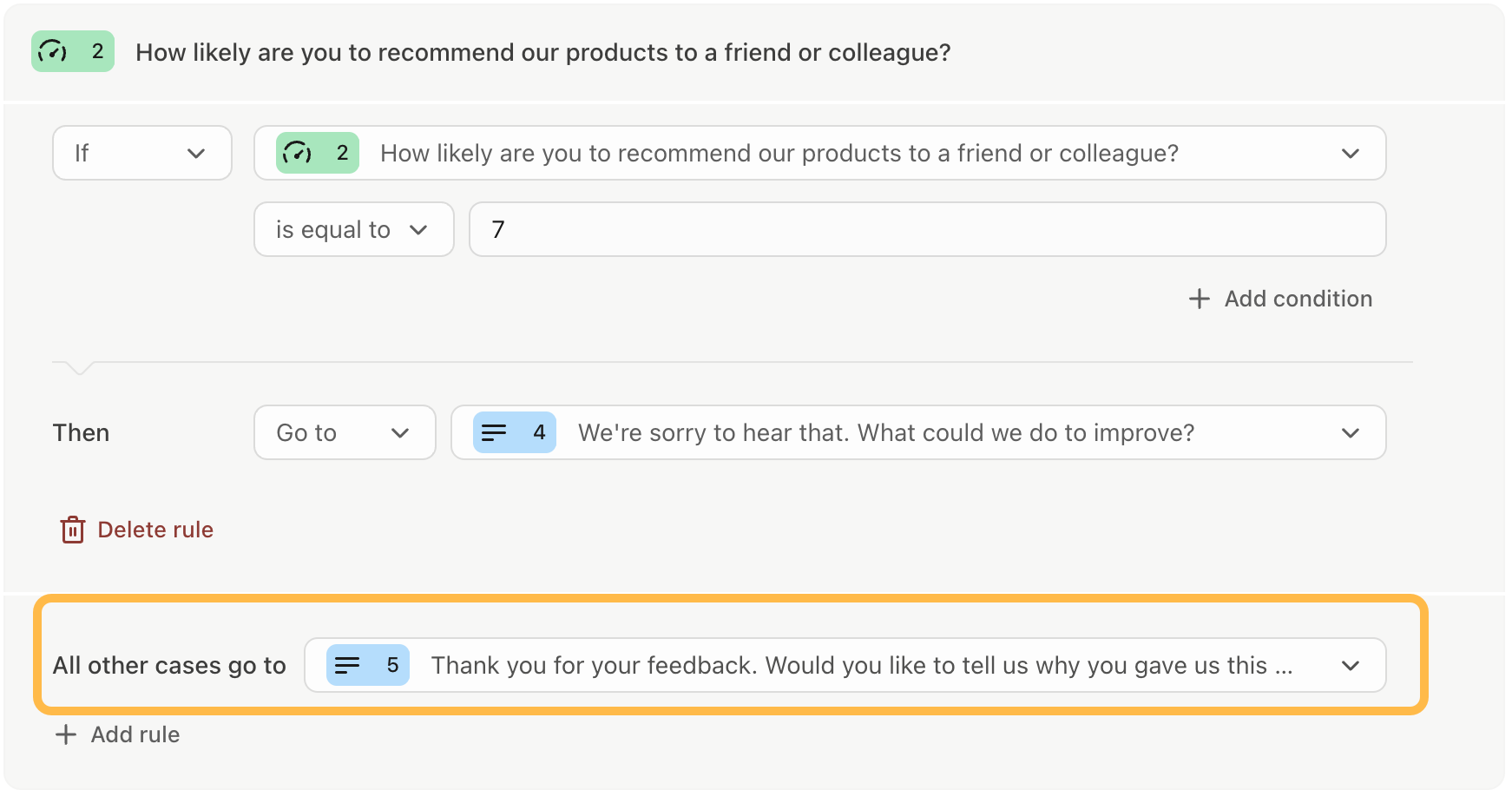

You can then set the rule All other cases go to question 5, so people who gave a higher score of 7 will always jump past question 4 and go to question 5. Then click Save when you're done.

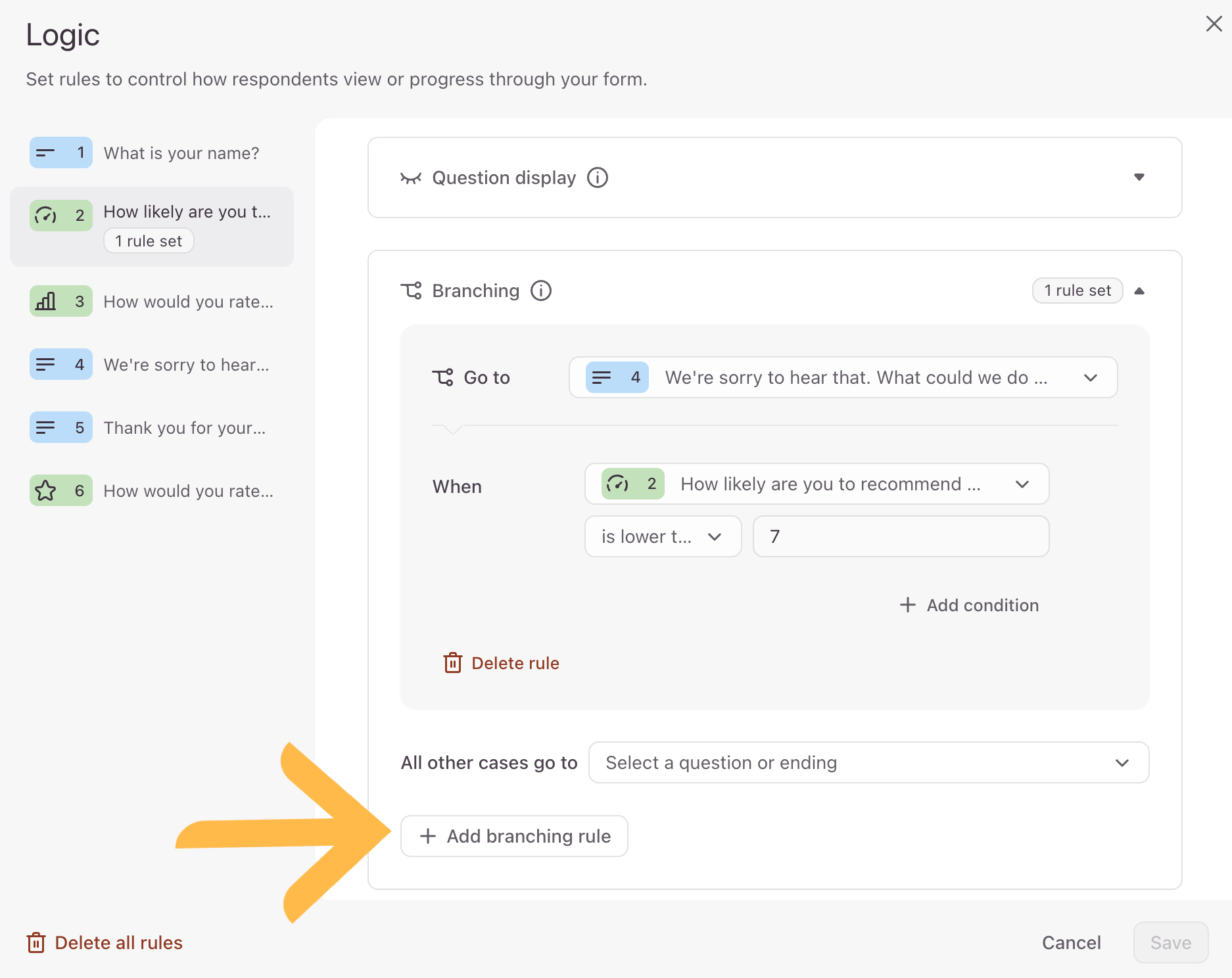

Alternatively, you can create another branching rule by clicking + Add branching rule. Then add a rule for when a respondent gives a score greater than 8.
We'll create the rule:

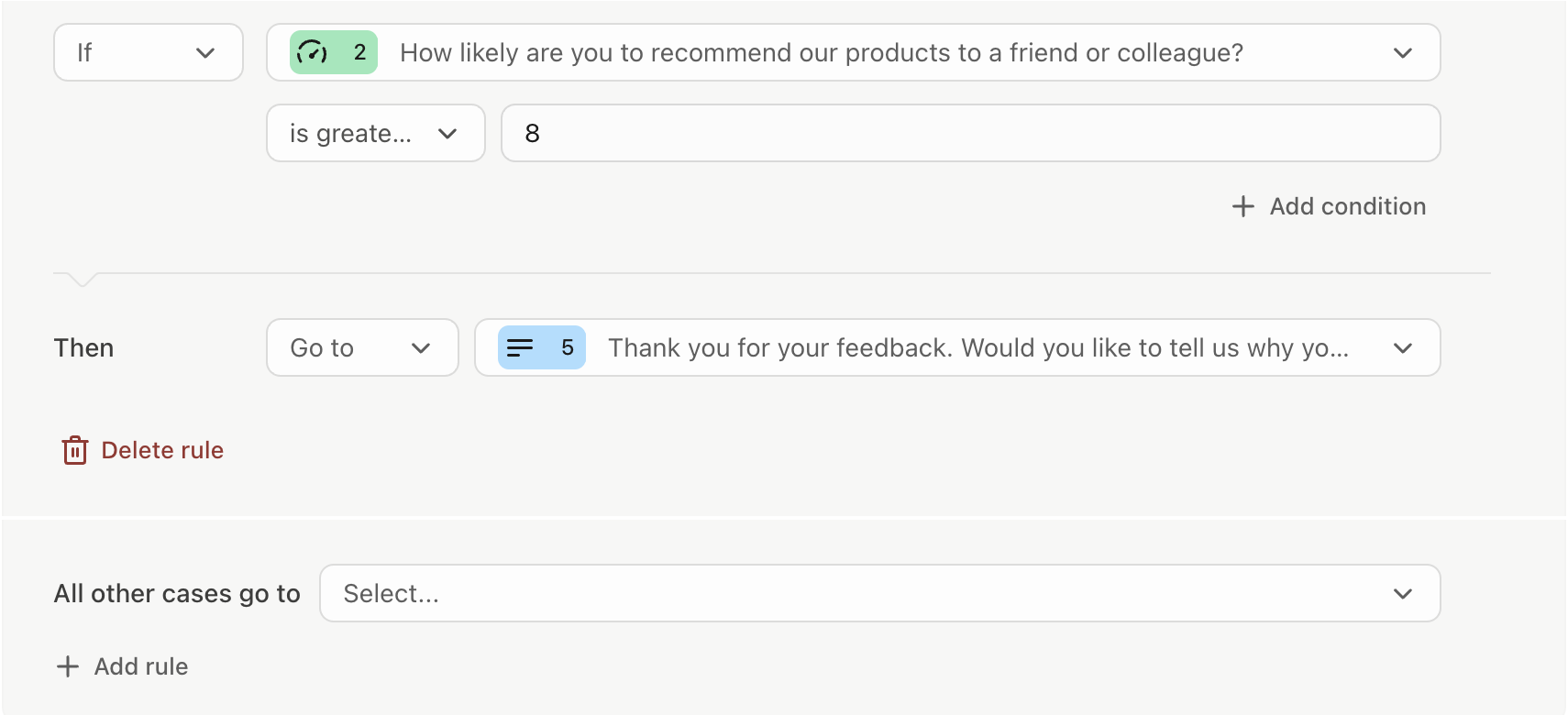

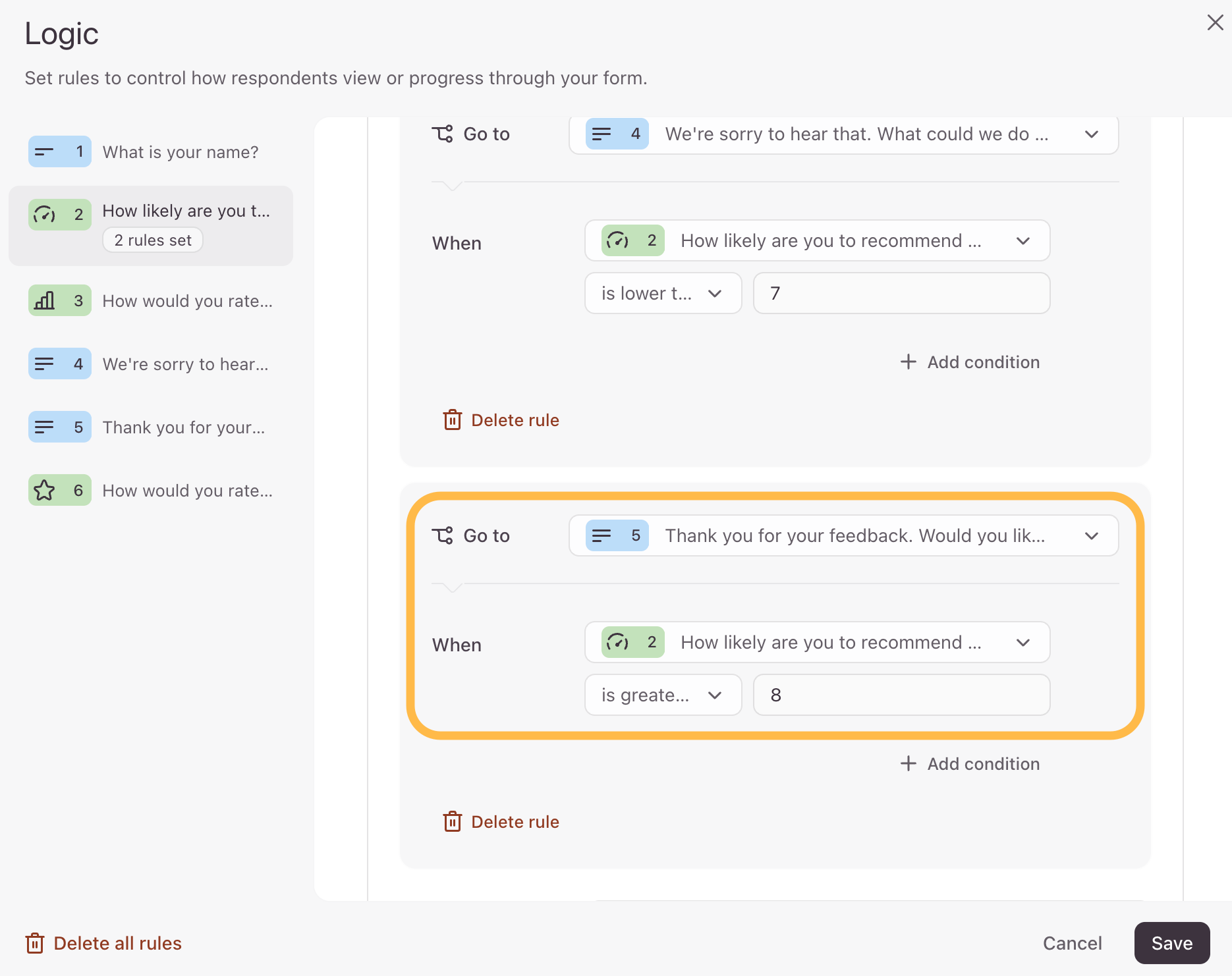

Go to question 5 when question 2 is greater than 8

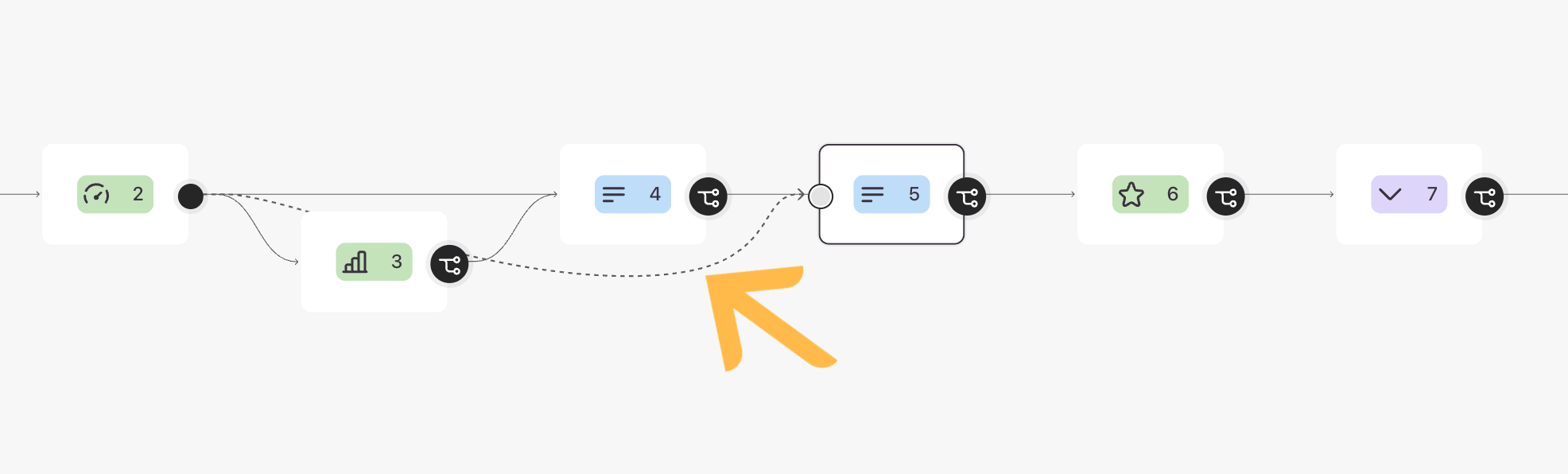

The logic flow will be the same in both cases.

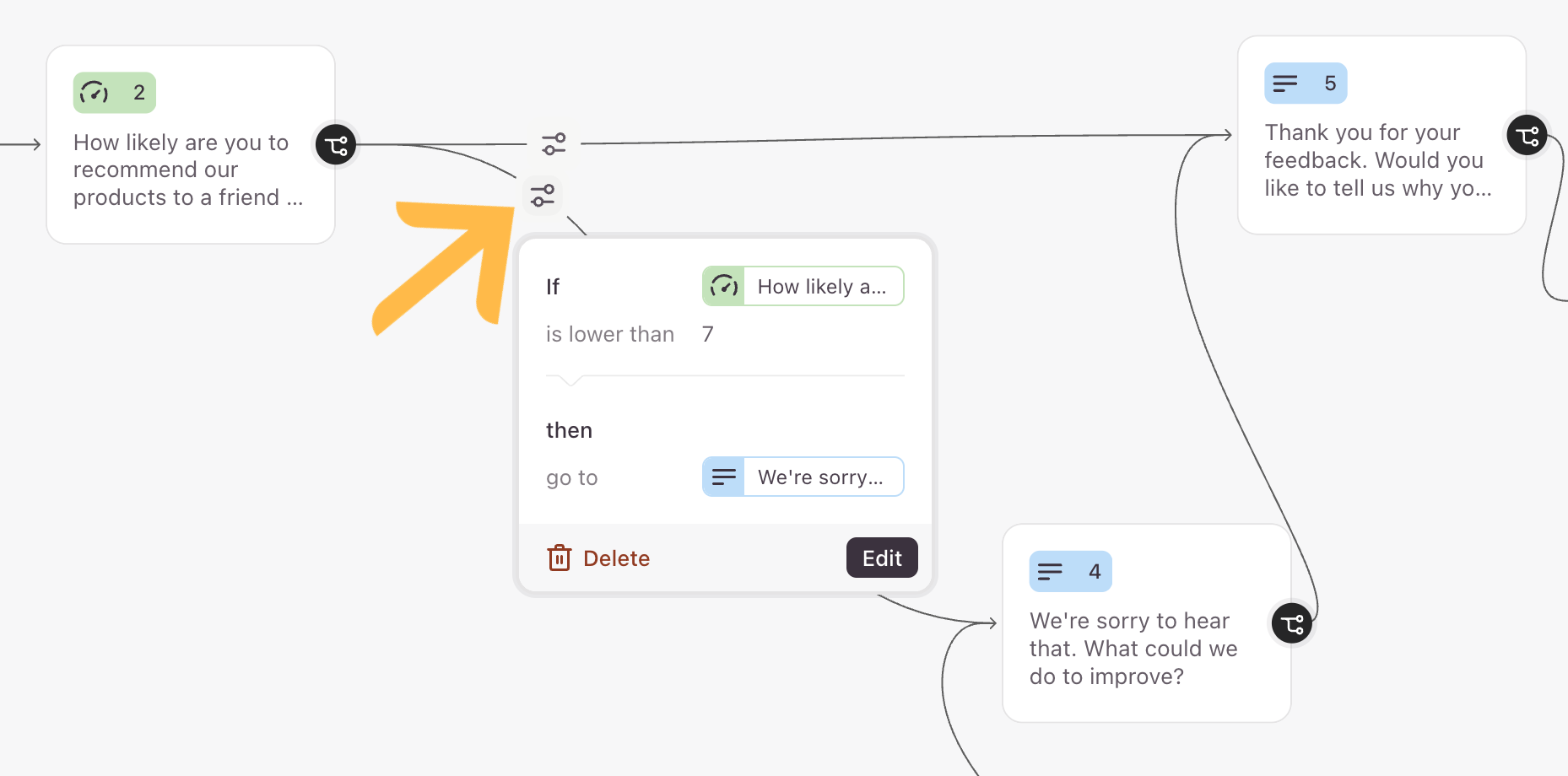

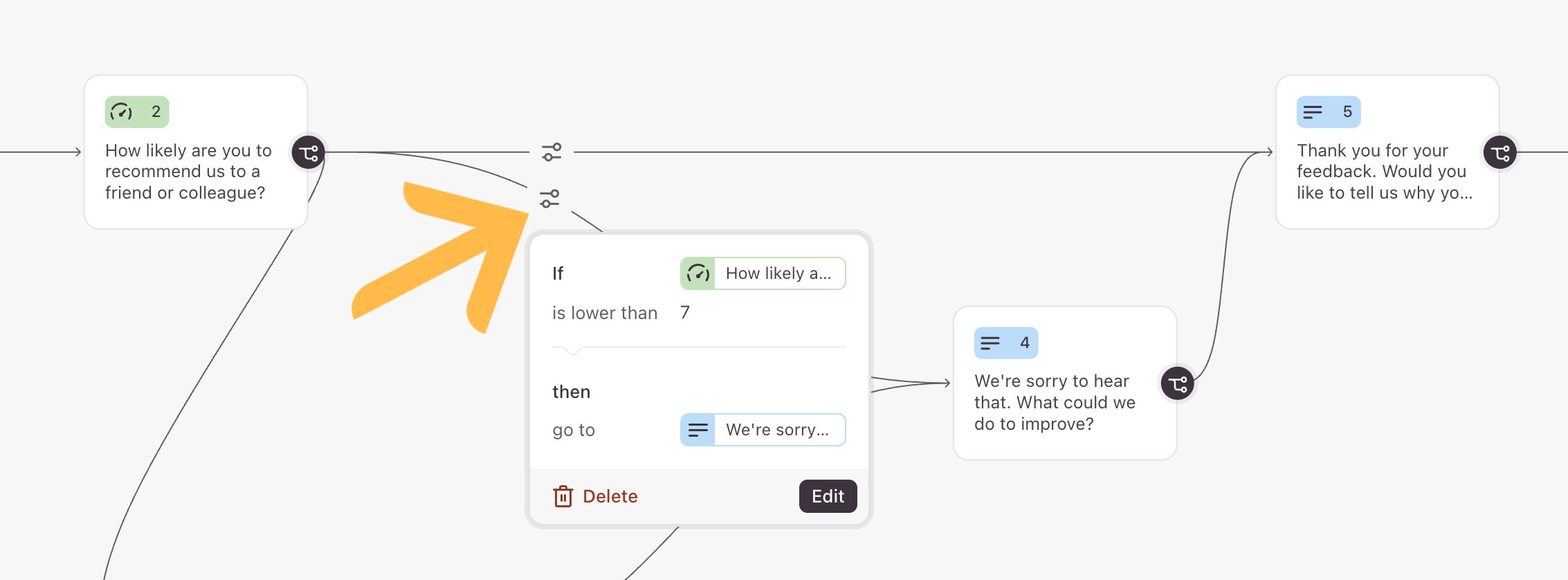

Now that your logic is set up, you can click the branching icon to view existing logic on that path. Click Edit to update it, or the trash can icon to delete it.

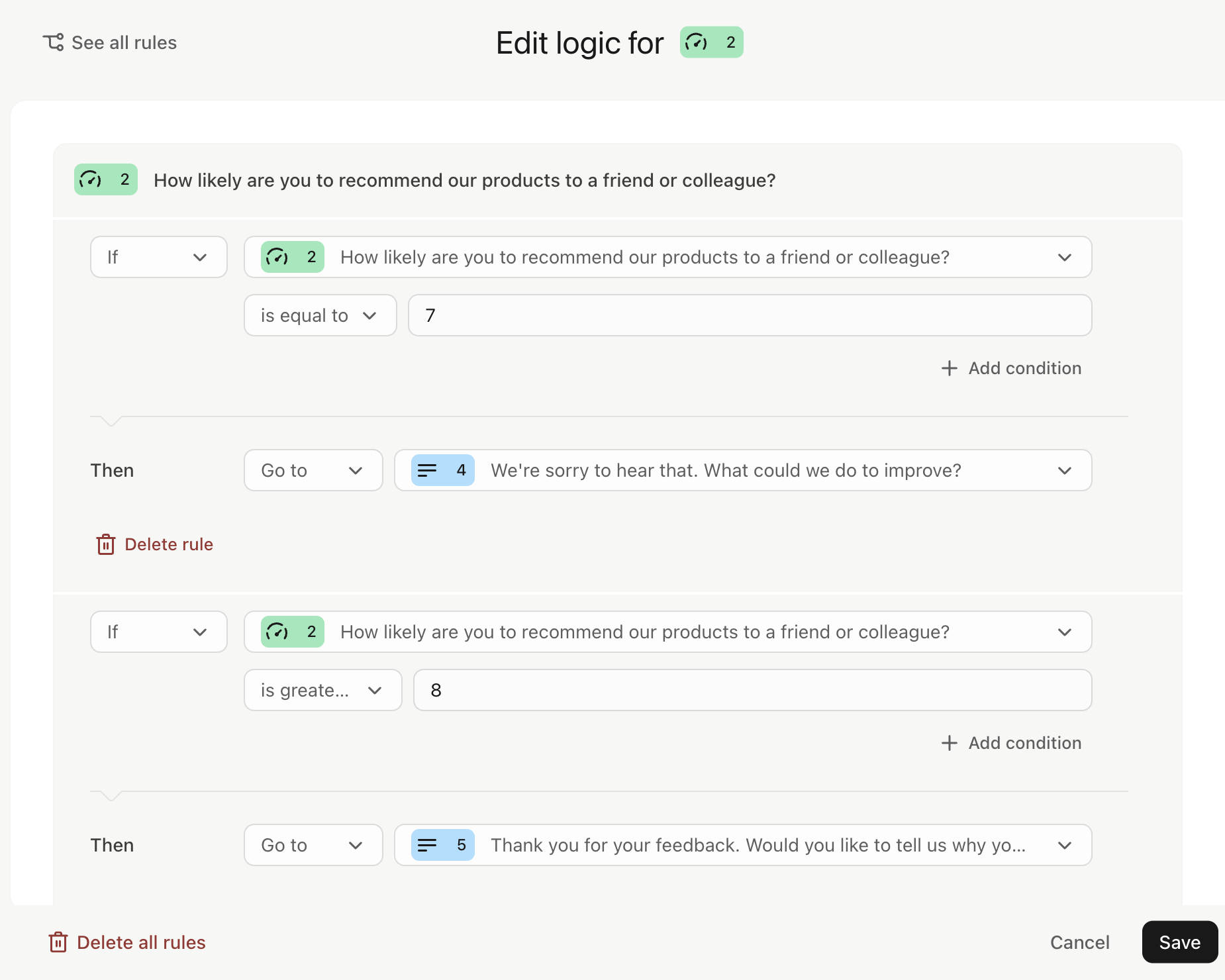

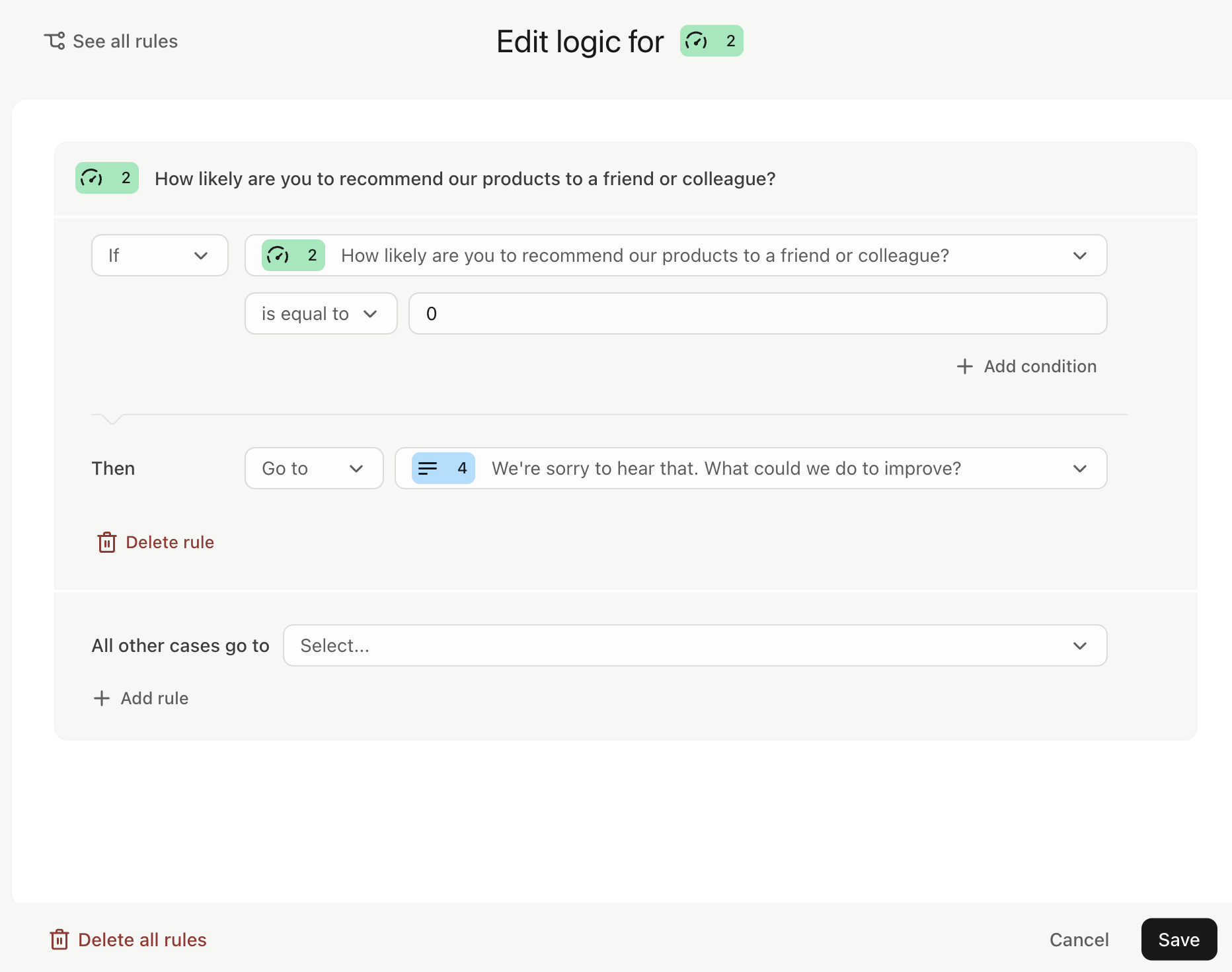

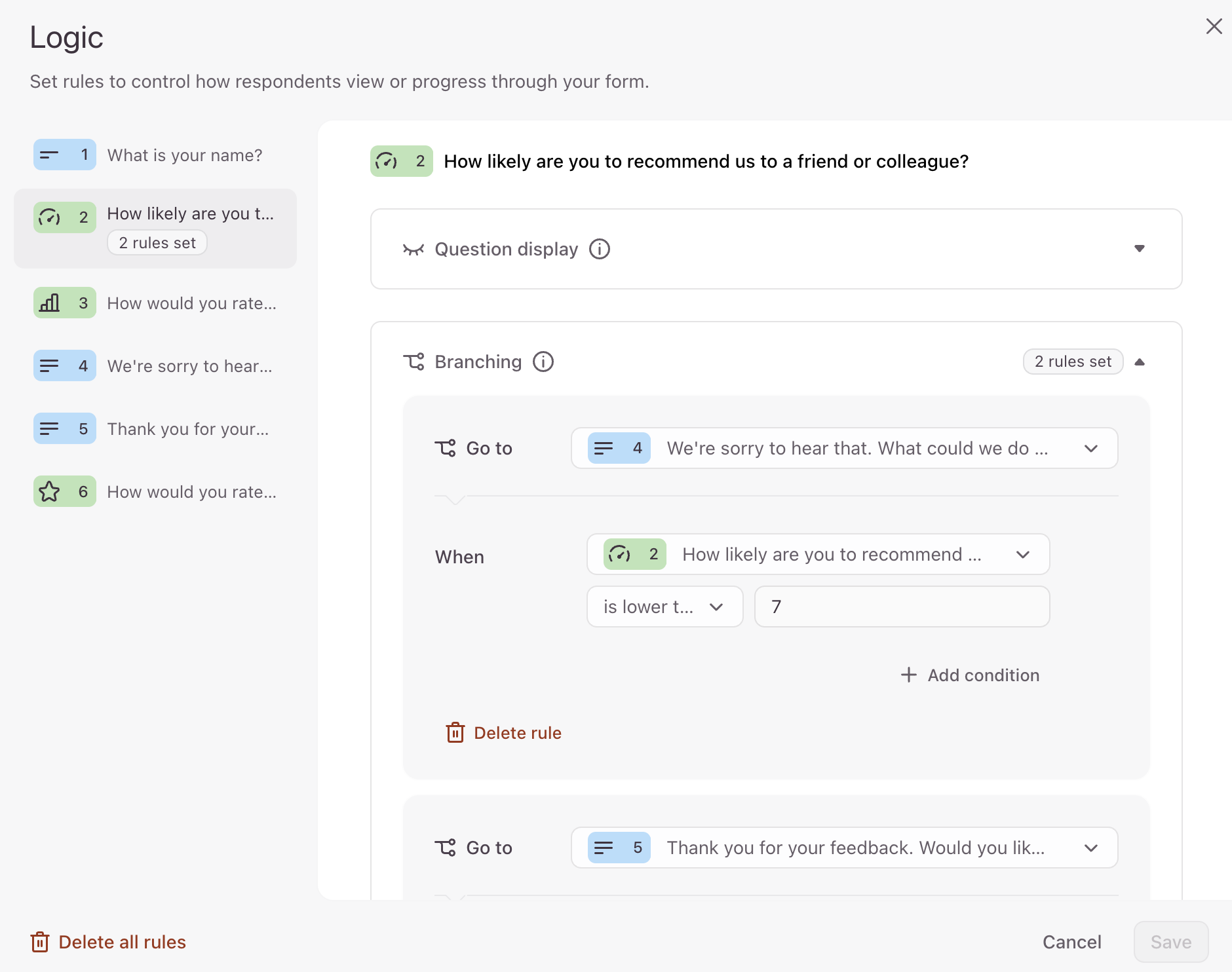

Clicking Edit will once again open up the logic editor with a list of existing logic added to that question.
You can also click Delete rule, + Add condition, or Delete all rules to change your logic flow. Just make sure to click Save when you're done.
Current limitations
There are some logic types that you can’t modify directly from the Logic Map just yet. These limitations are the following:
- You can't add Logic to assign answers from multiple questions to different Endings directly from the Logic Map. To link answers to Endings, go to the Workflow tab, and select Outcome quiz. You can find out more about assigning Endings to different responses.
- You can add scores using variables directly from the Logic Map. To create a simple score quiz by assigning points to answers, select Scoring under the within the Workflow tab. You can find out more in the score quiz guide.
