Logic is a paid feature that helps responders follow the path most relevant to them while completing a typeform. With a Logic Map you can visualize these different paths while designing and editing your typeforms.
Logic Map lets you see a graph of the Logic and overall structure of your typeform. This feature can come in handy when you’re trying to oversee several Logic Jumps in a typeform, or while troubleshooting Logic issues.
Here’s a list of our articles on Logic:
To open the Logic Map of your typeform:

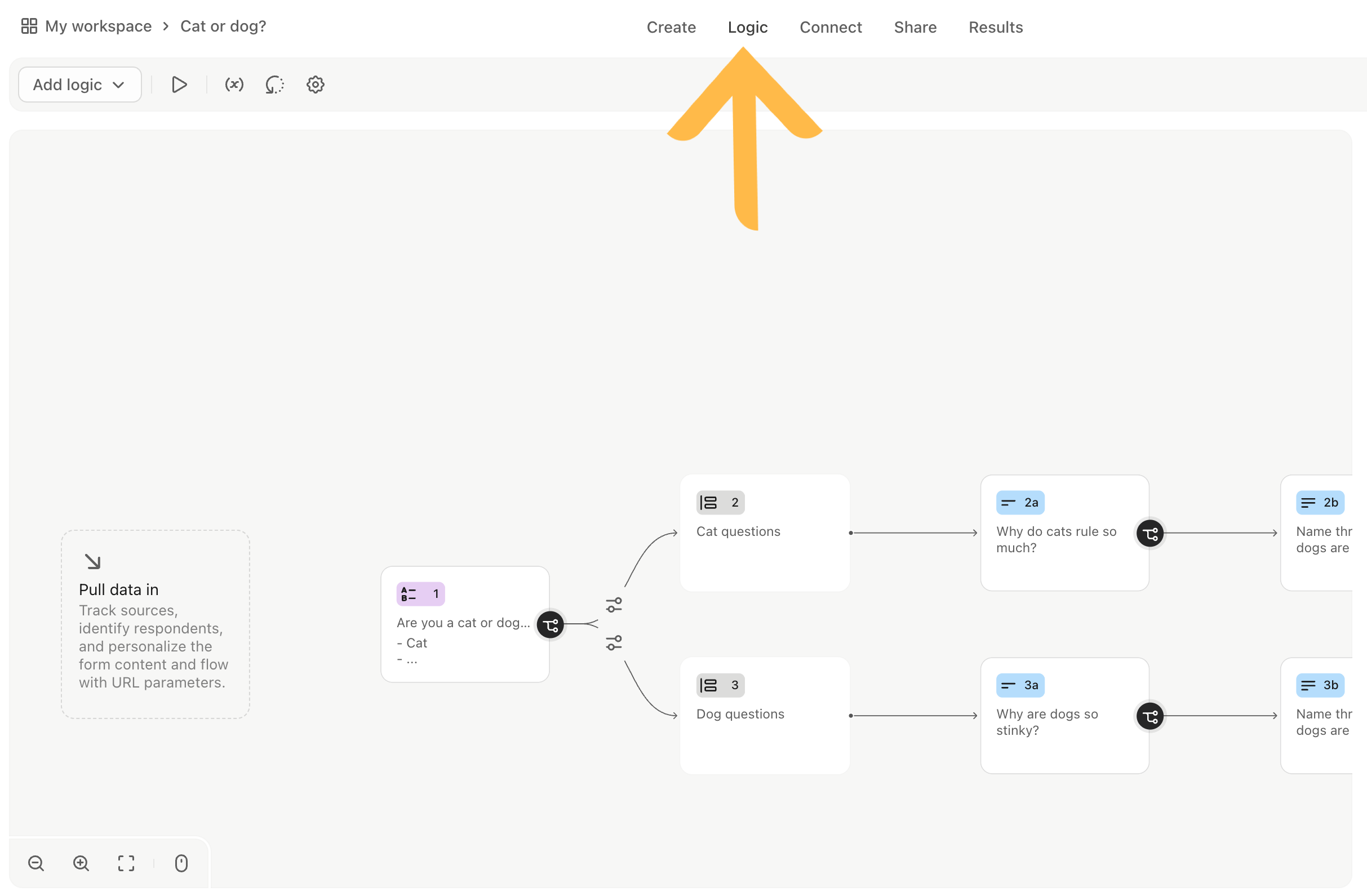

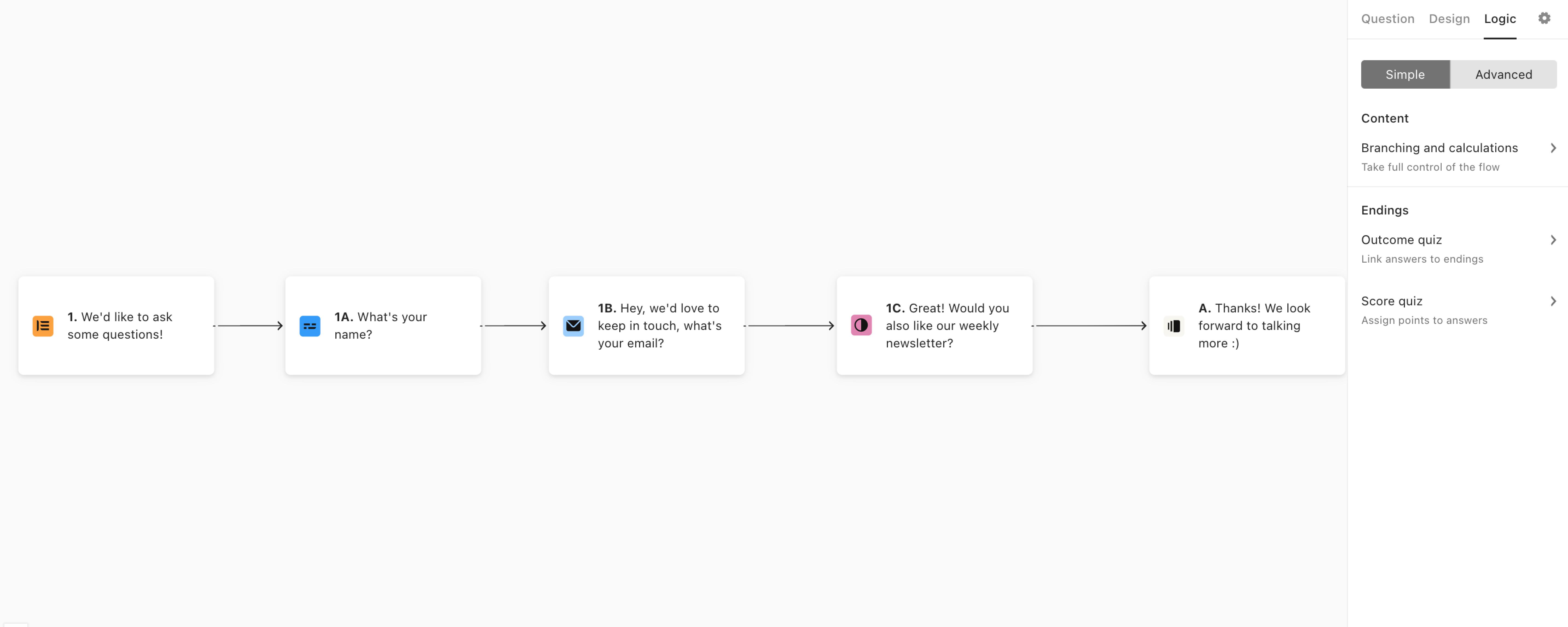

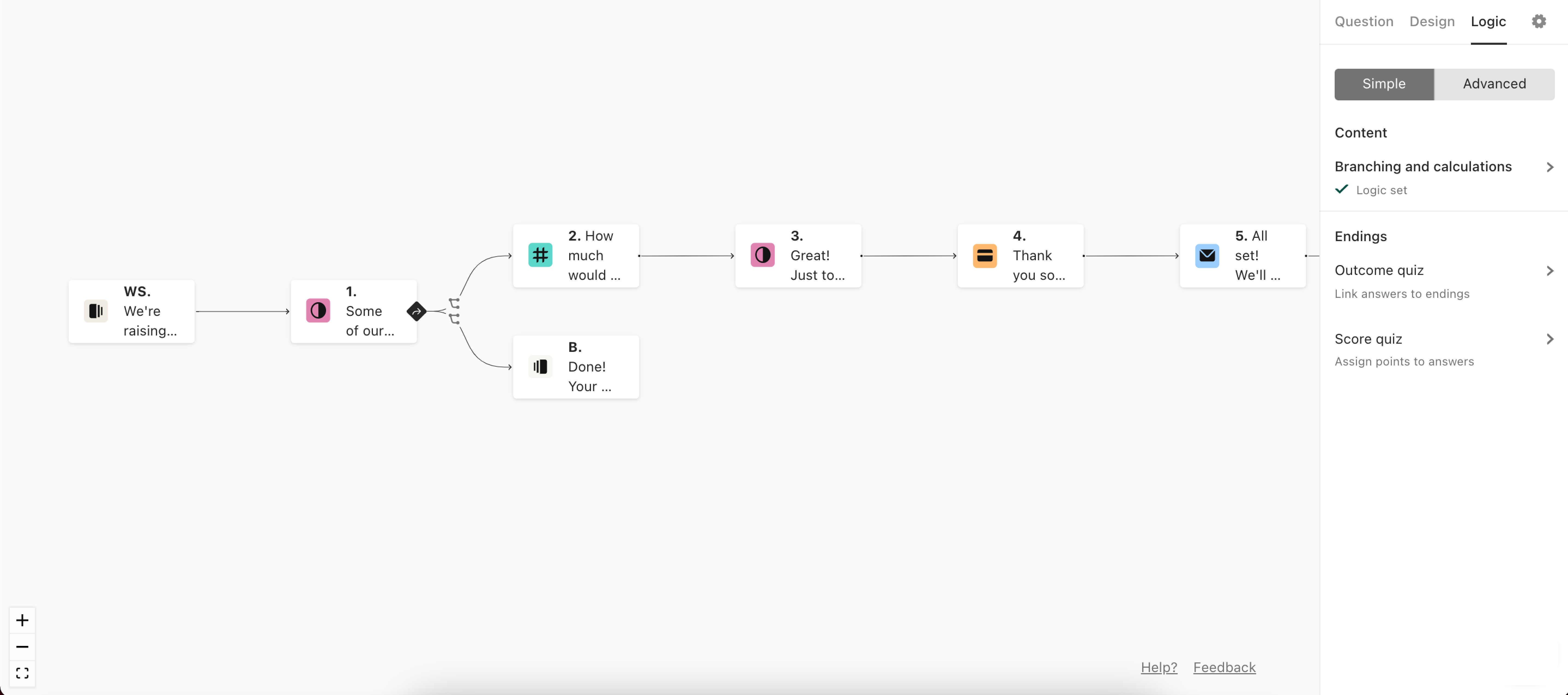

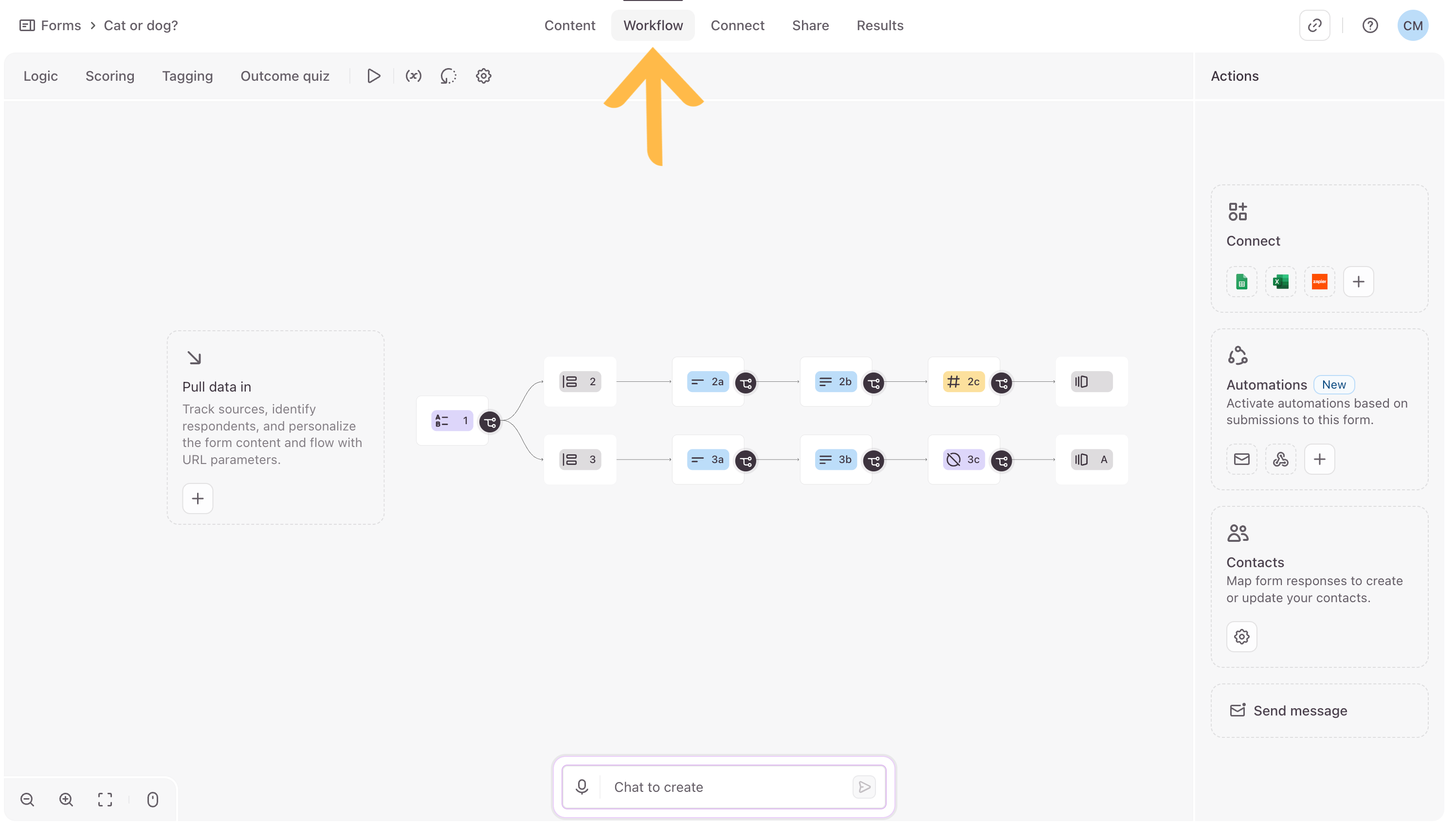

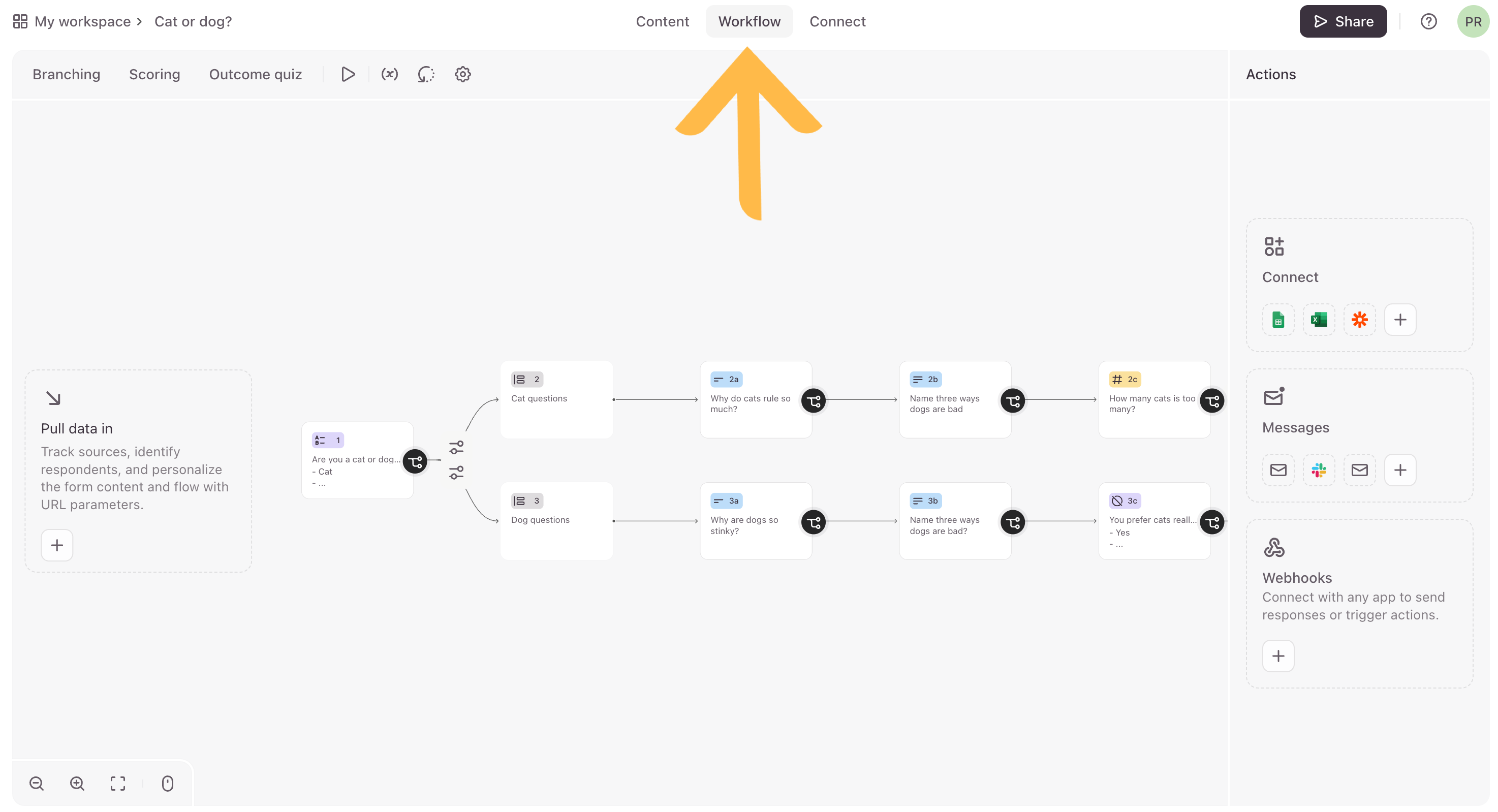

1. Go to the Logic panel, where you’ll see the Logic Map on the right:

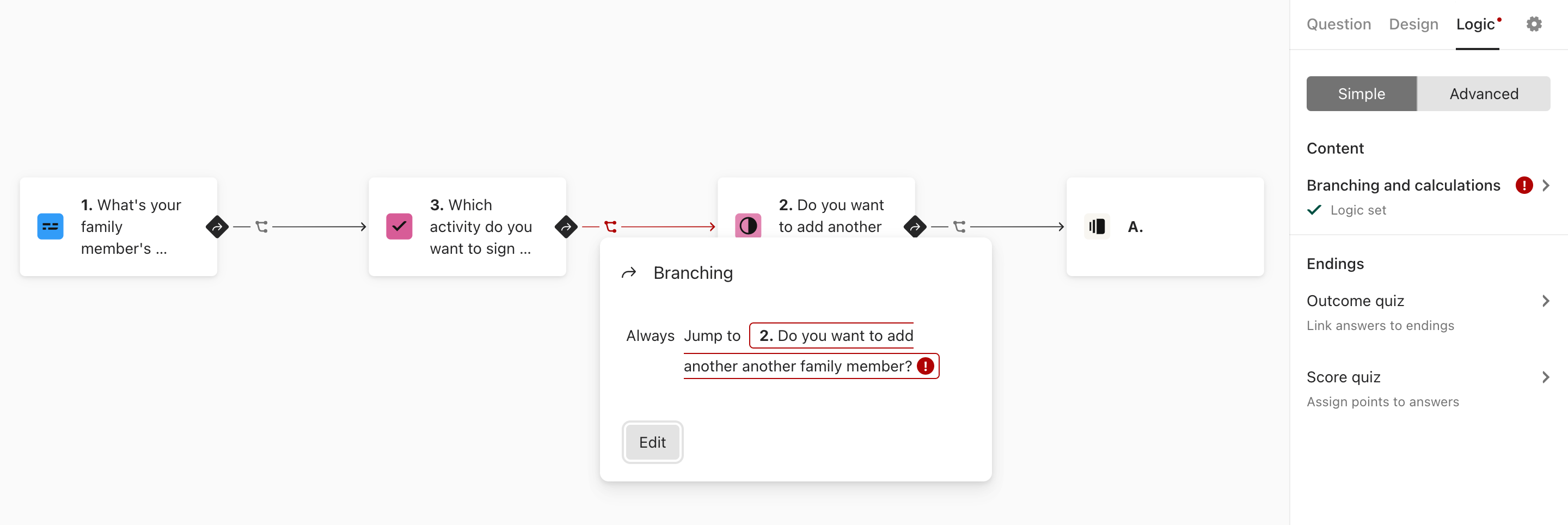

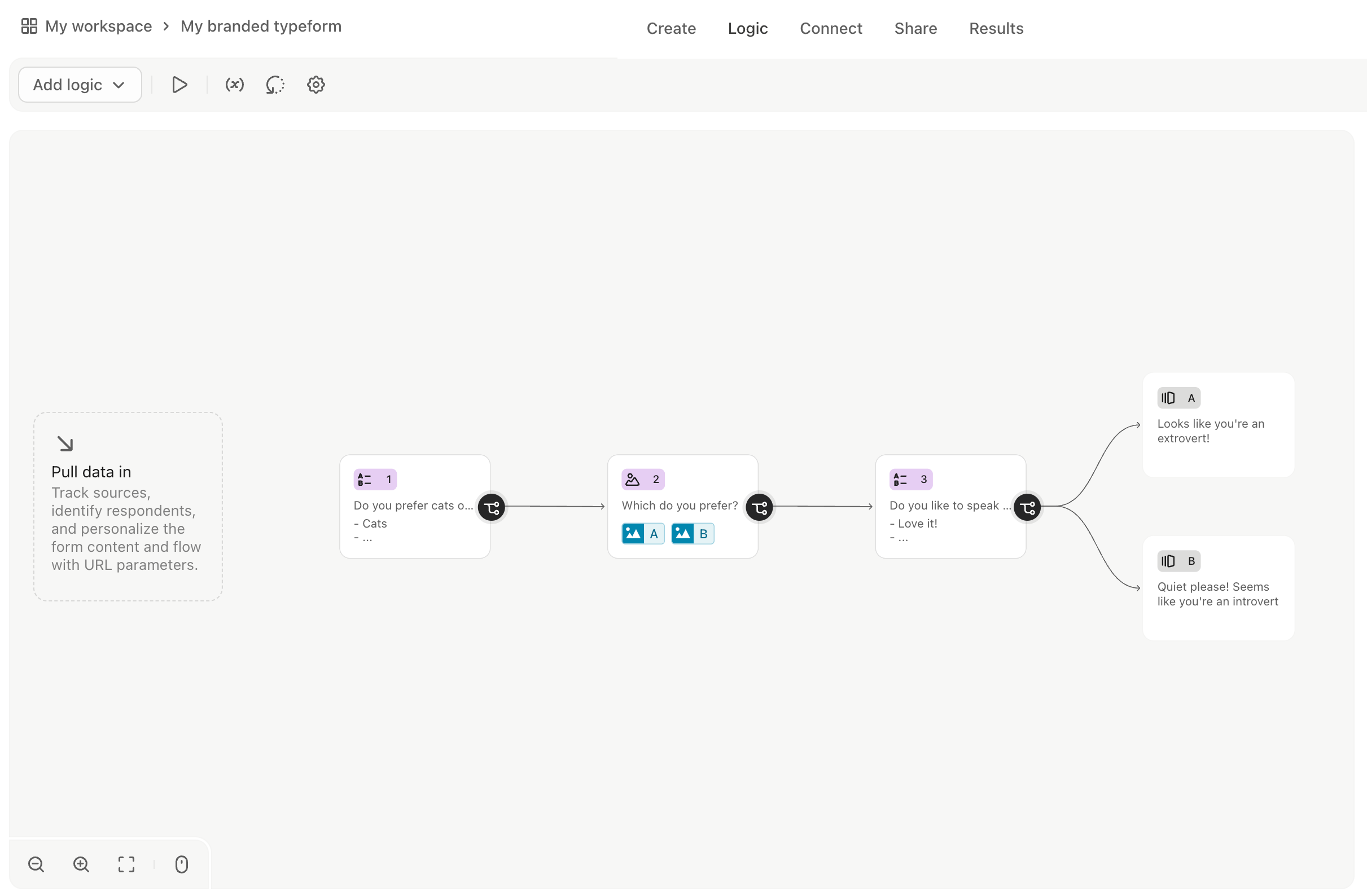

If you’ve already added Logic to your typeform, you’ll see a green tick next to the type(s) of Logic you’ve used. The Logic Map also shows colored icons for the different question types in your typeform:

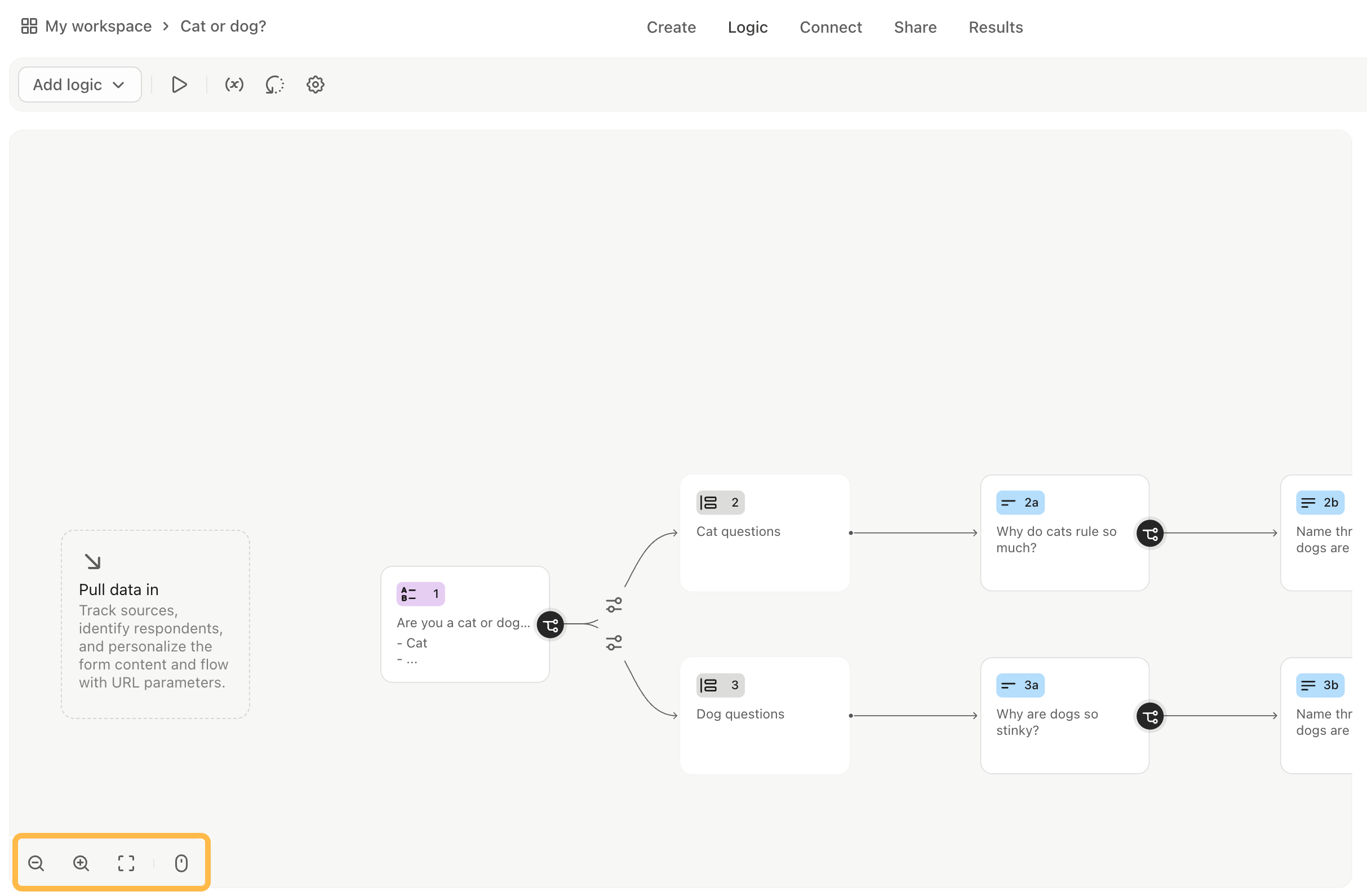

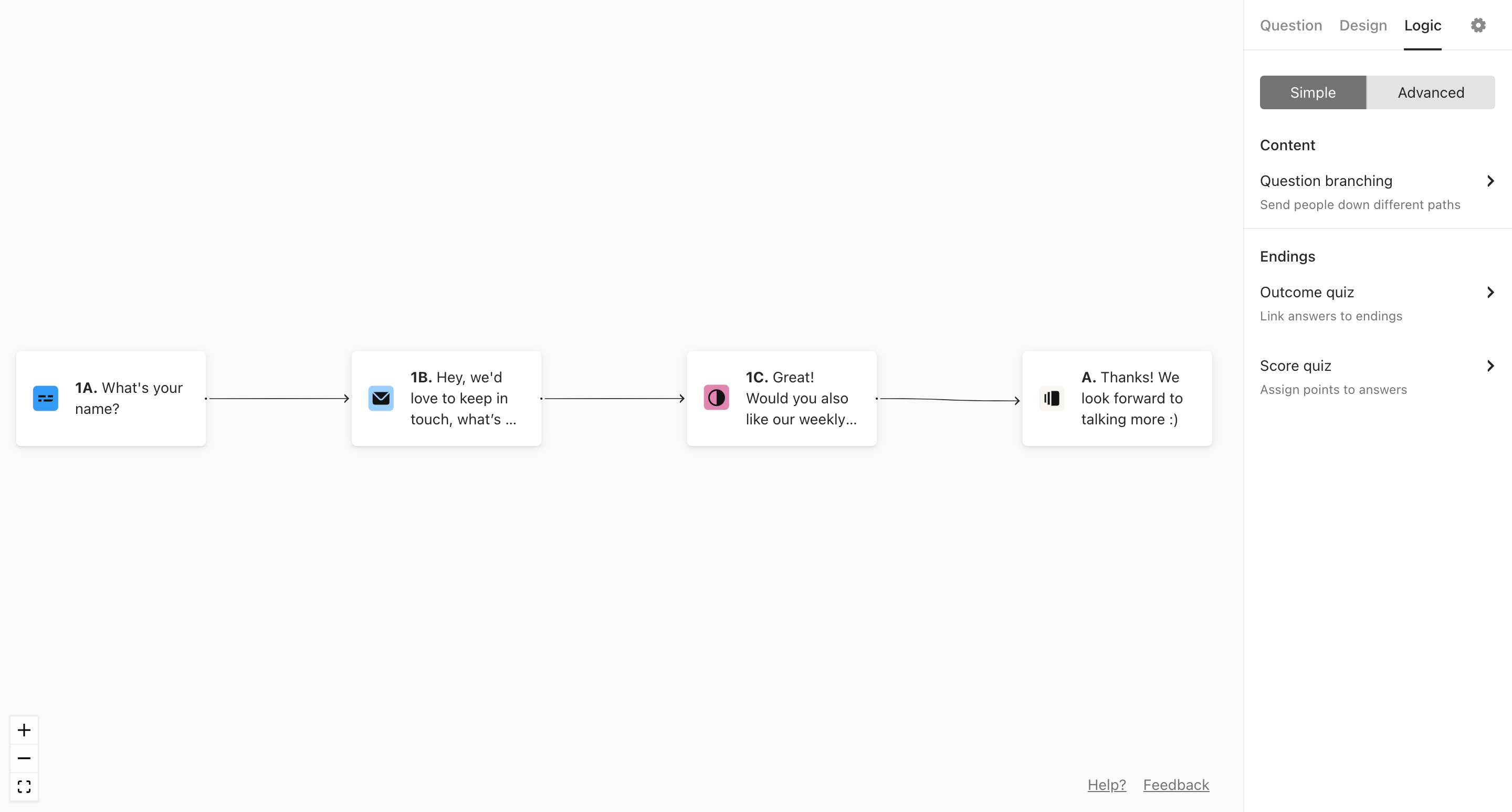

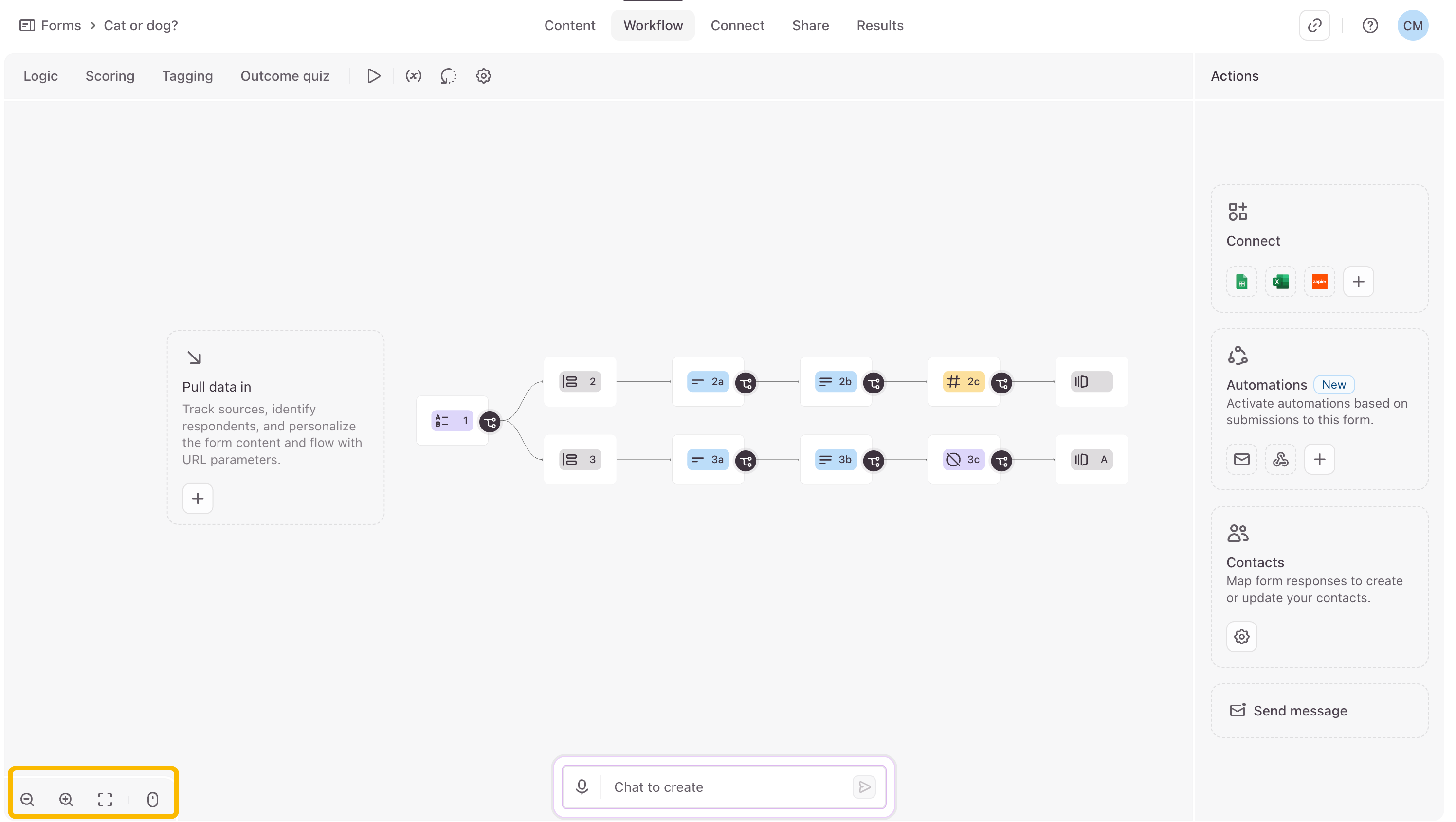

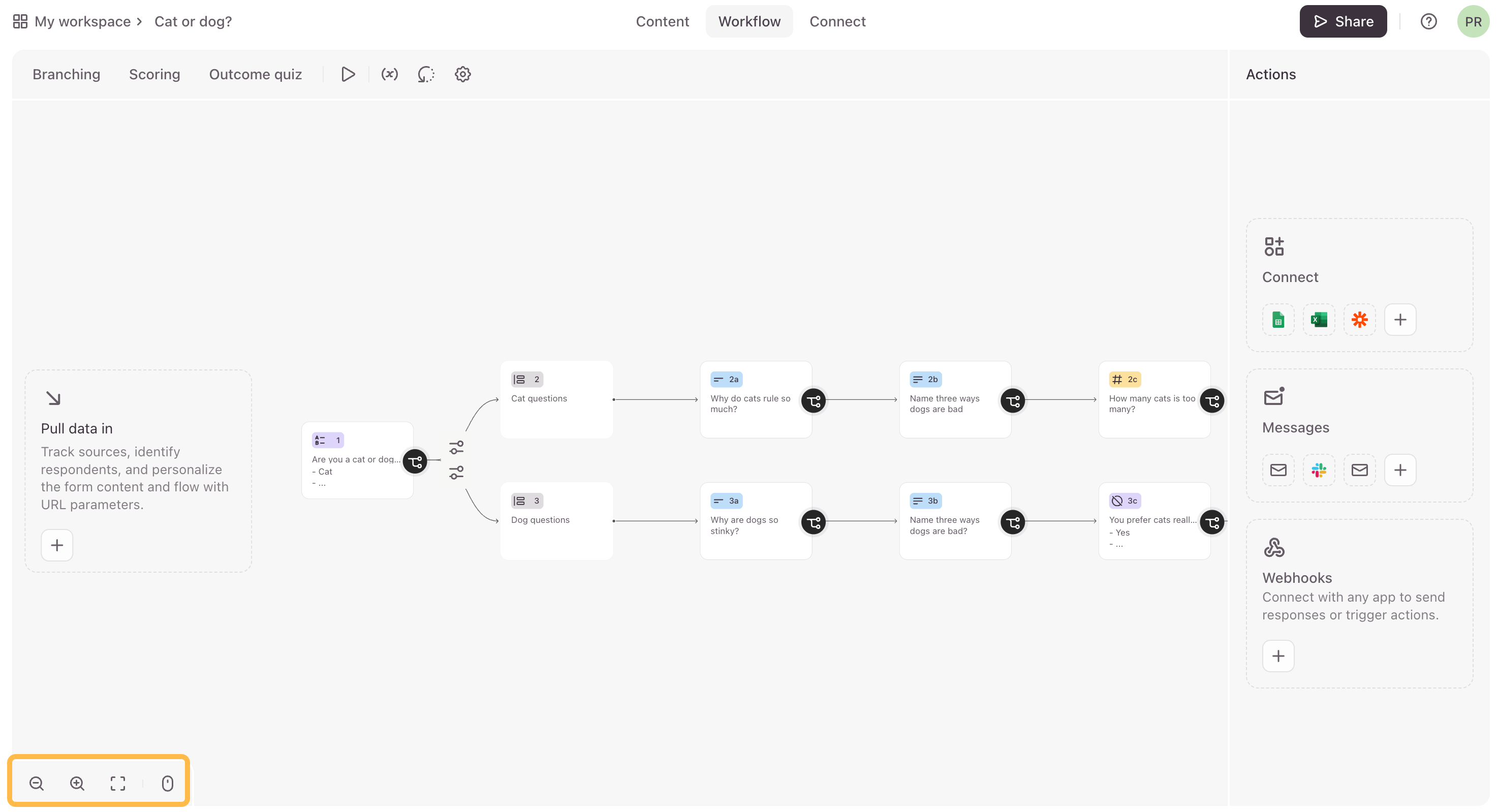

2. Click the icons to zoom in (+), zoom out (-), or to center your Logic Map. You can also drag and drop your questions to rearrange the flowchart.

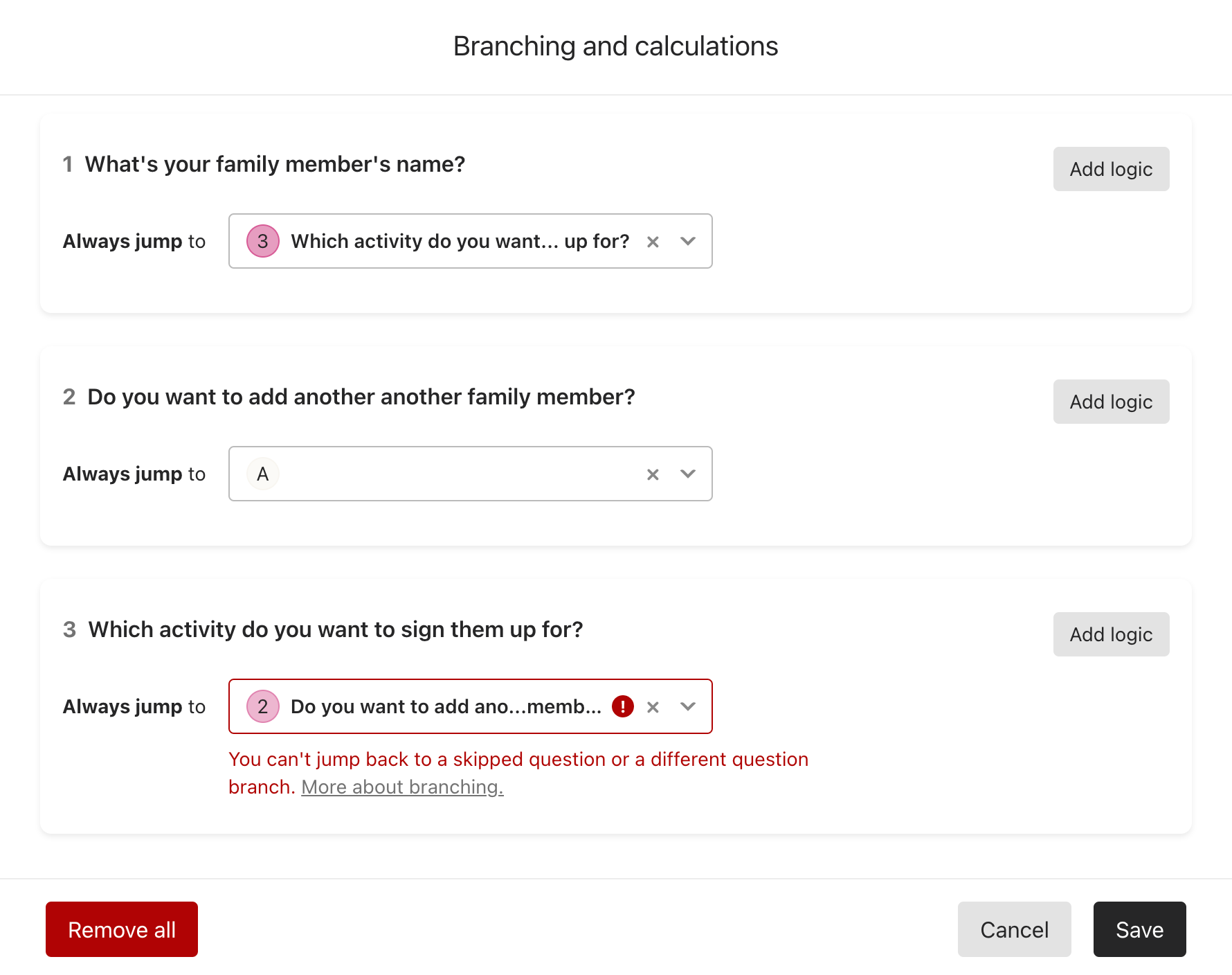

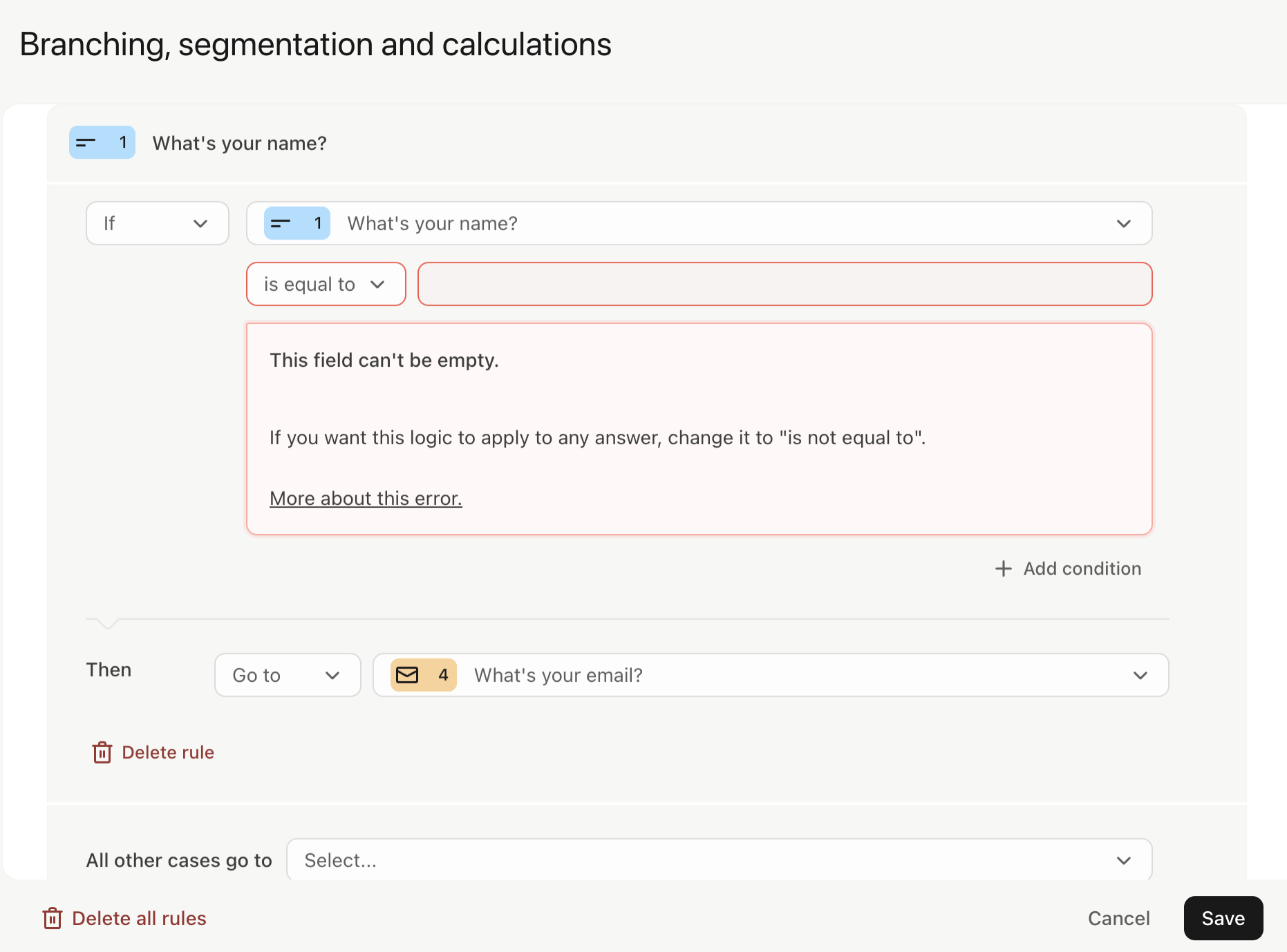

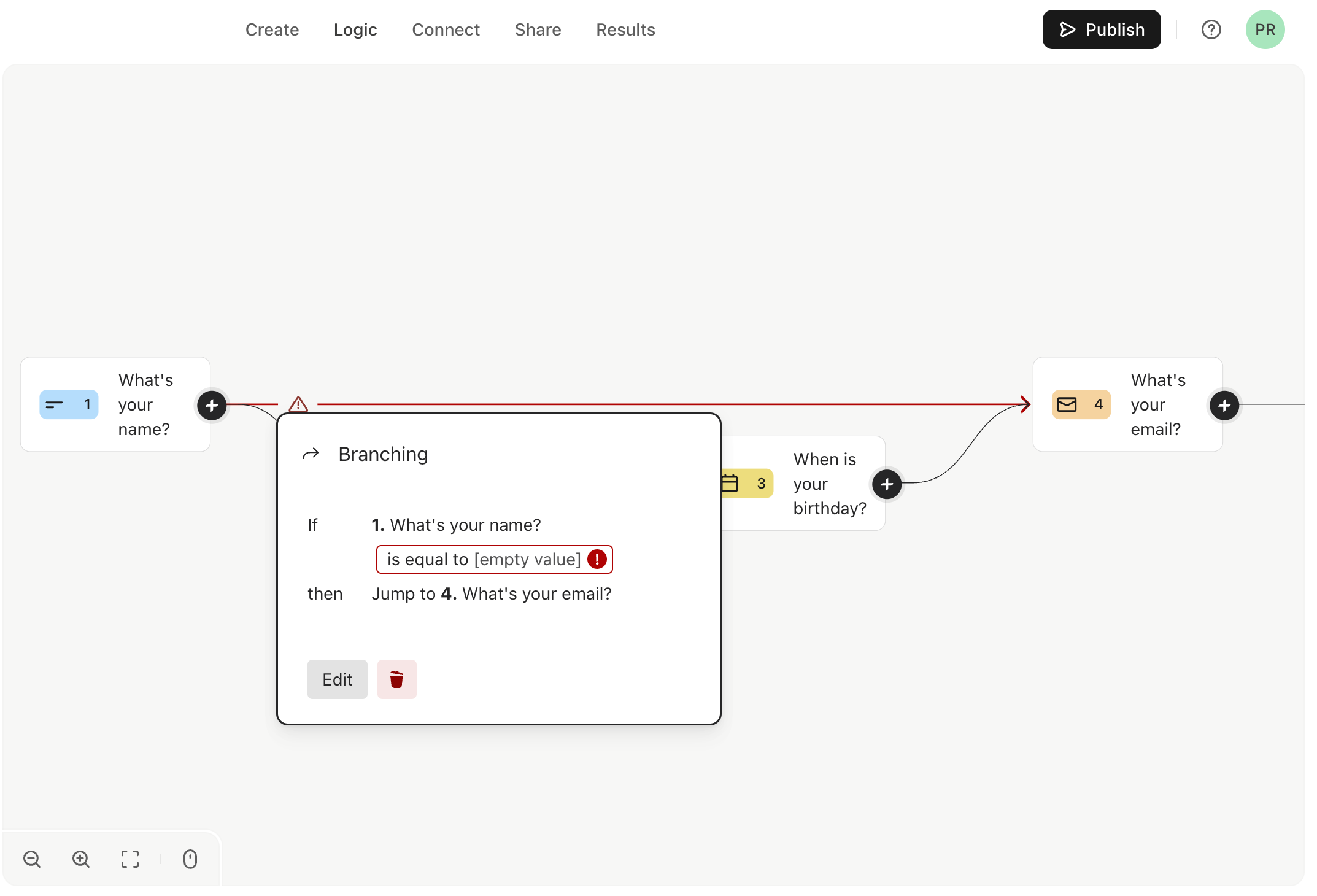

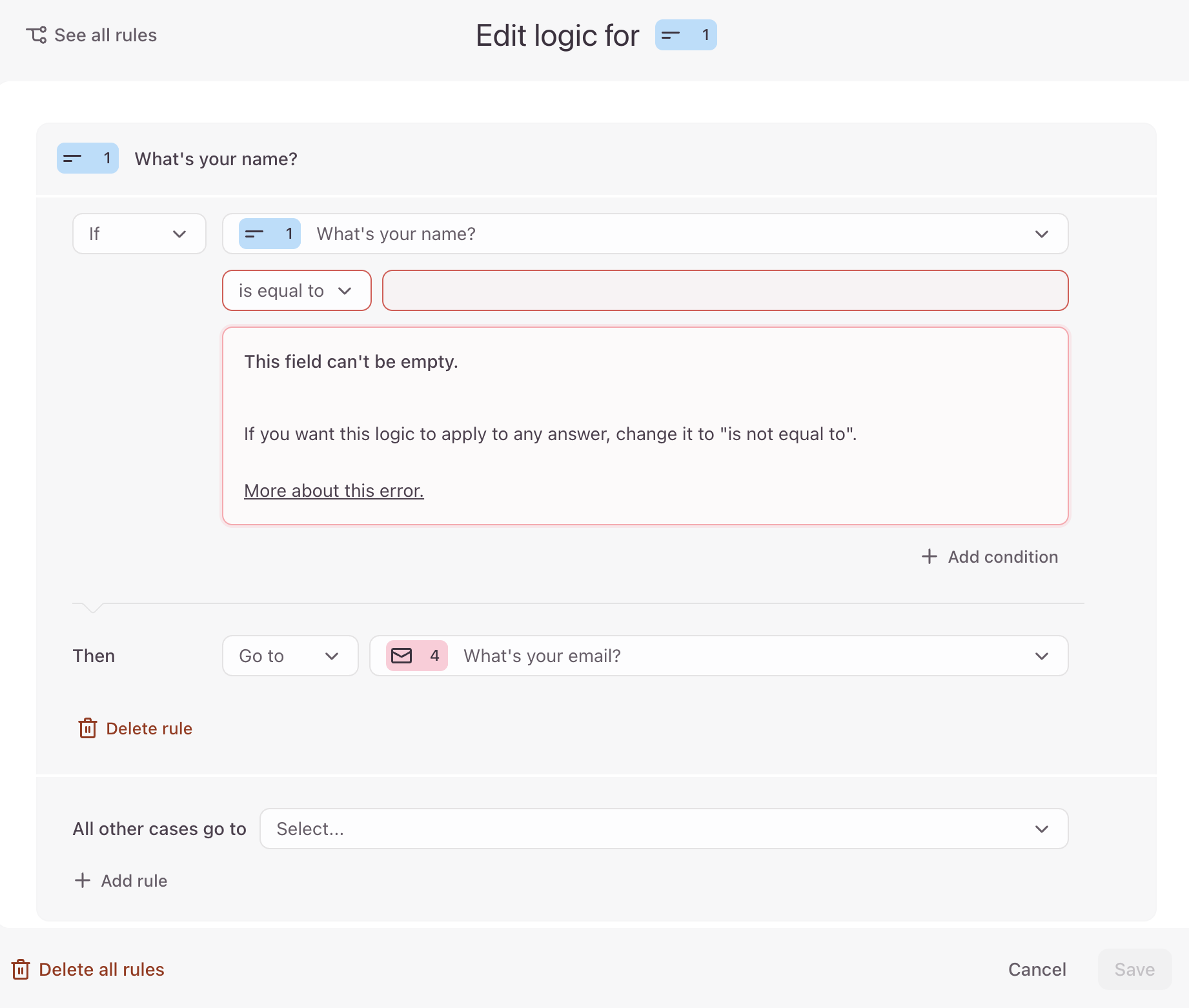

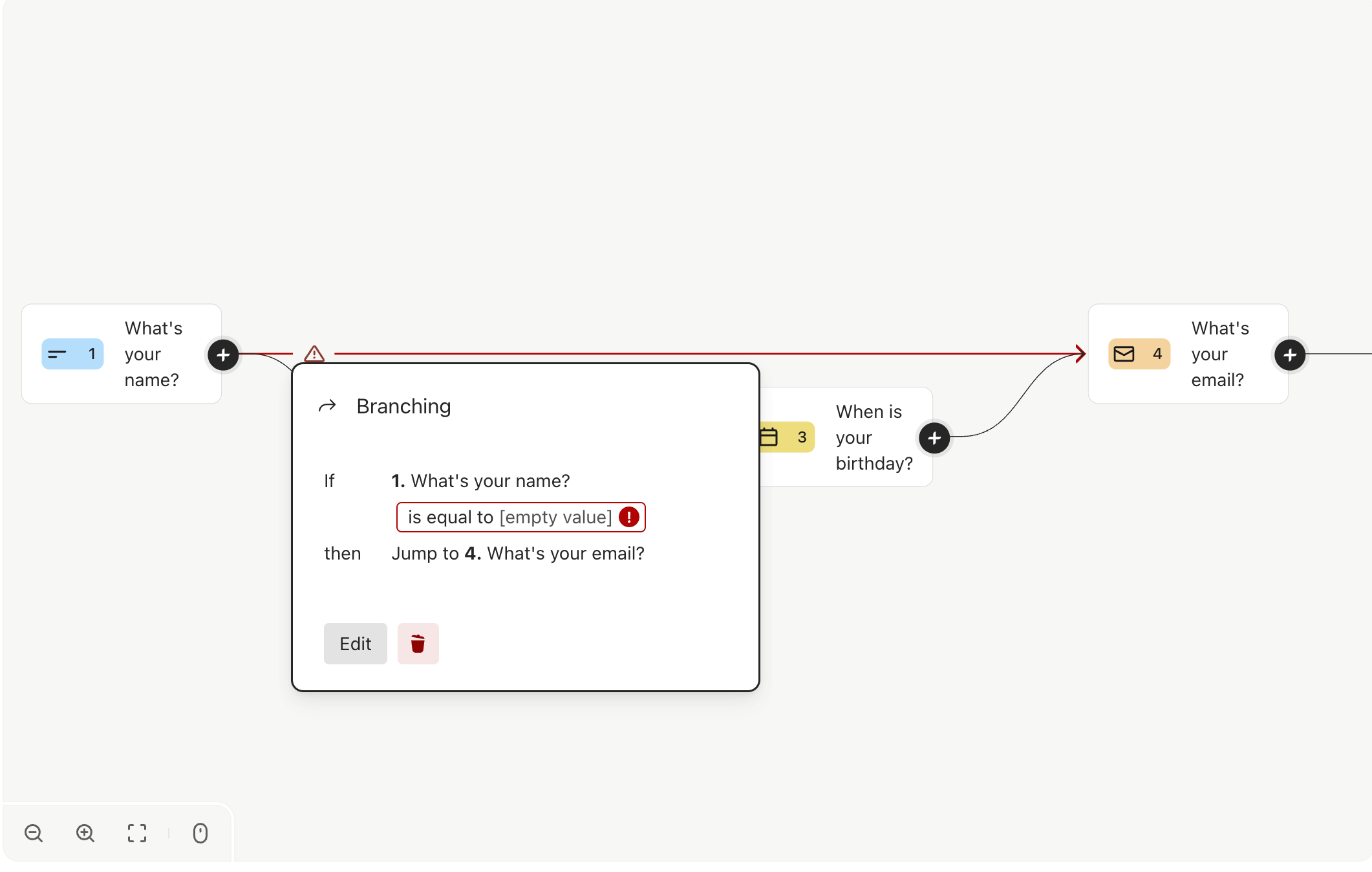

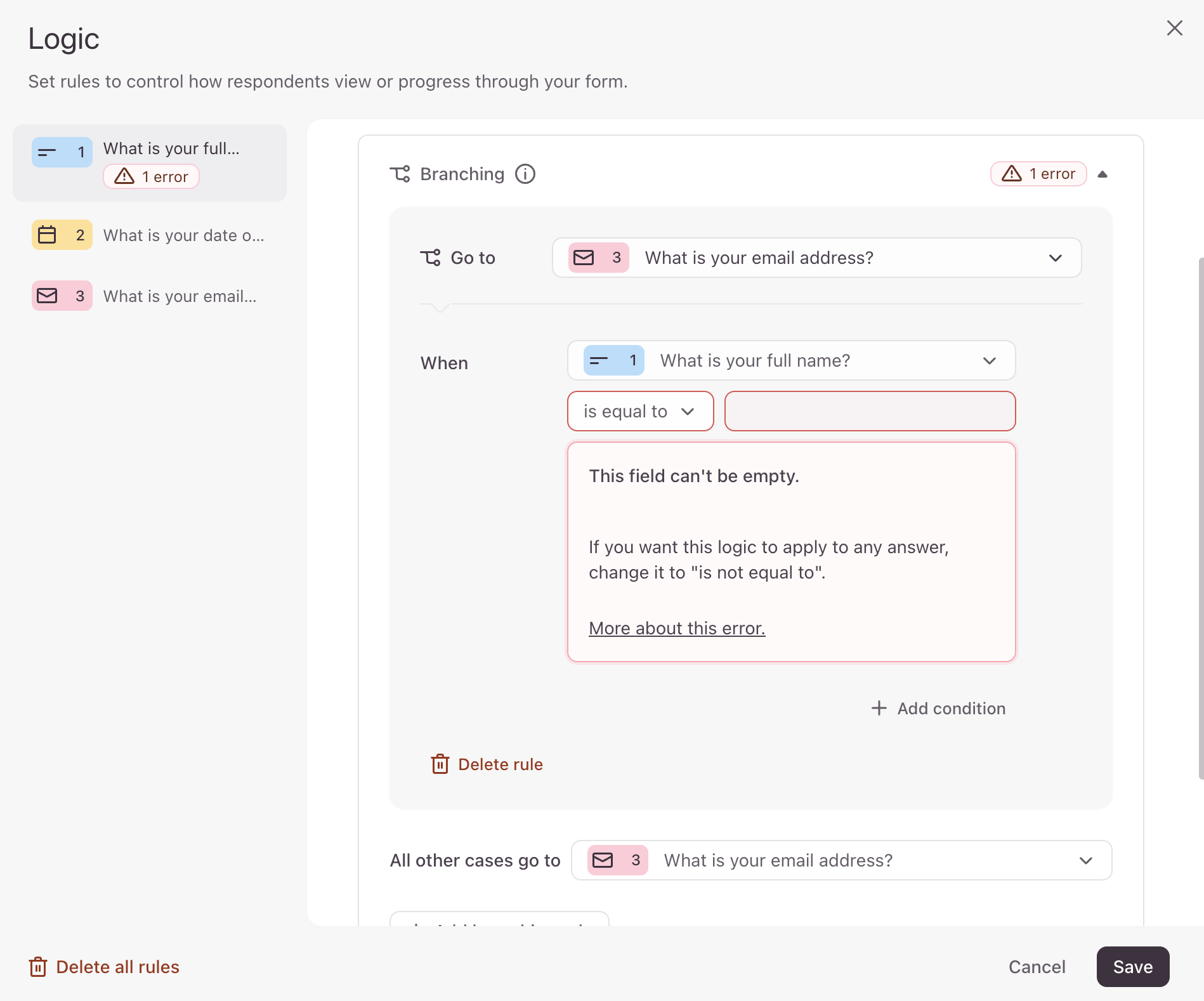

Note! You can't change the Logic path of a typeform by moving the questions around in its Logic Map. To update your Logic, go to the type of Logic you've set - indicated by the green tick -, and edit it there.

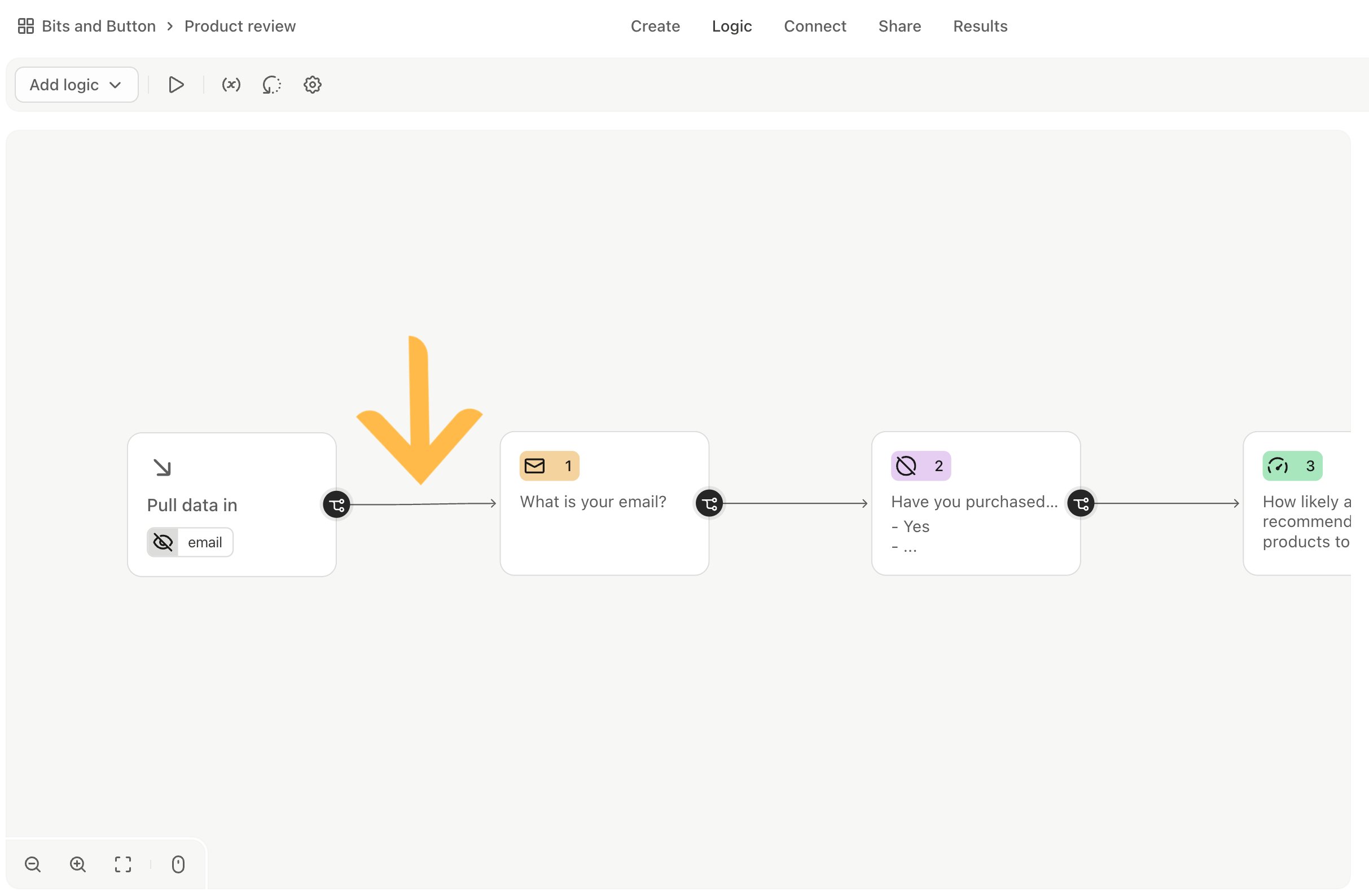

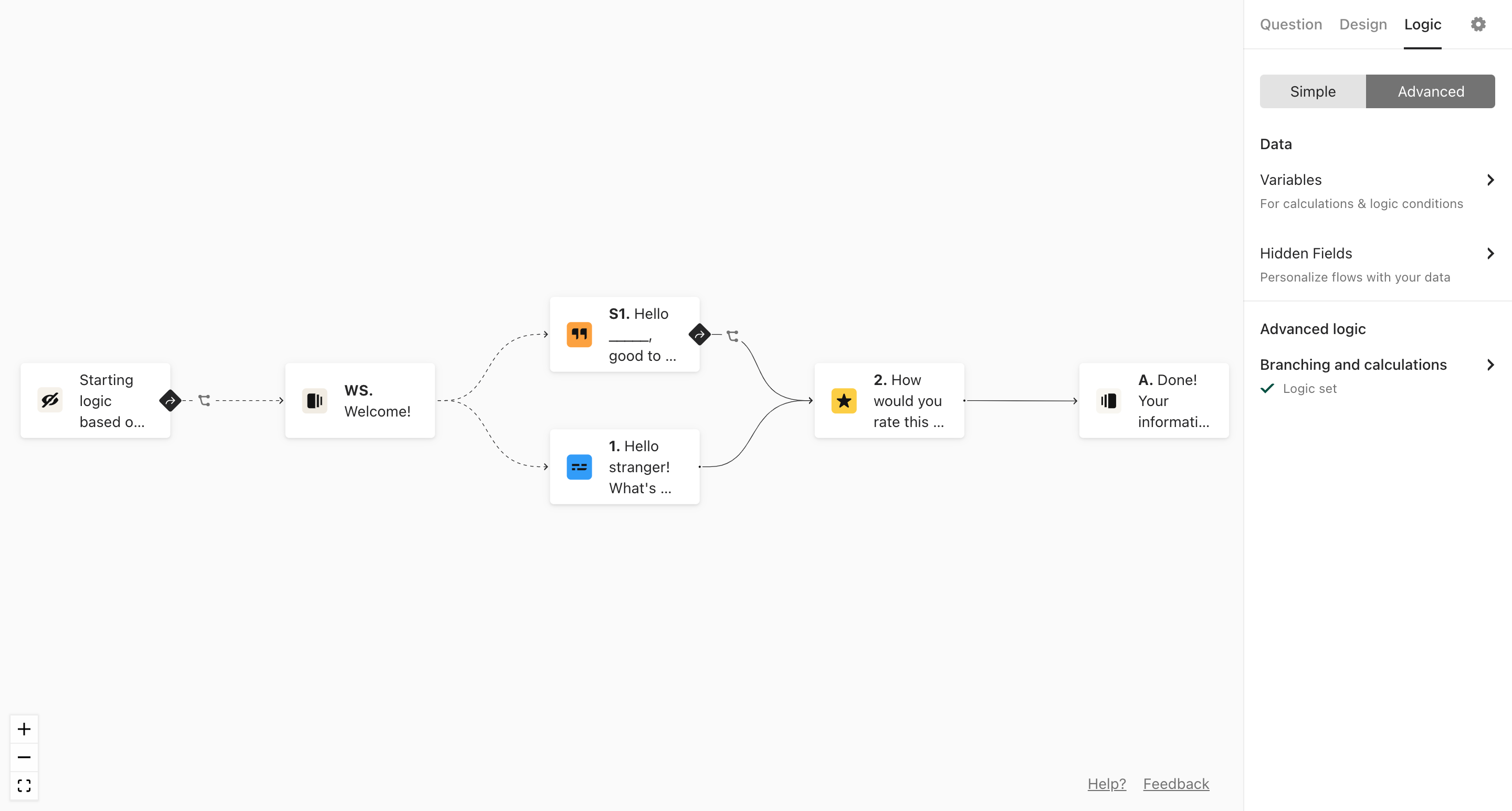

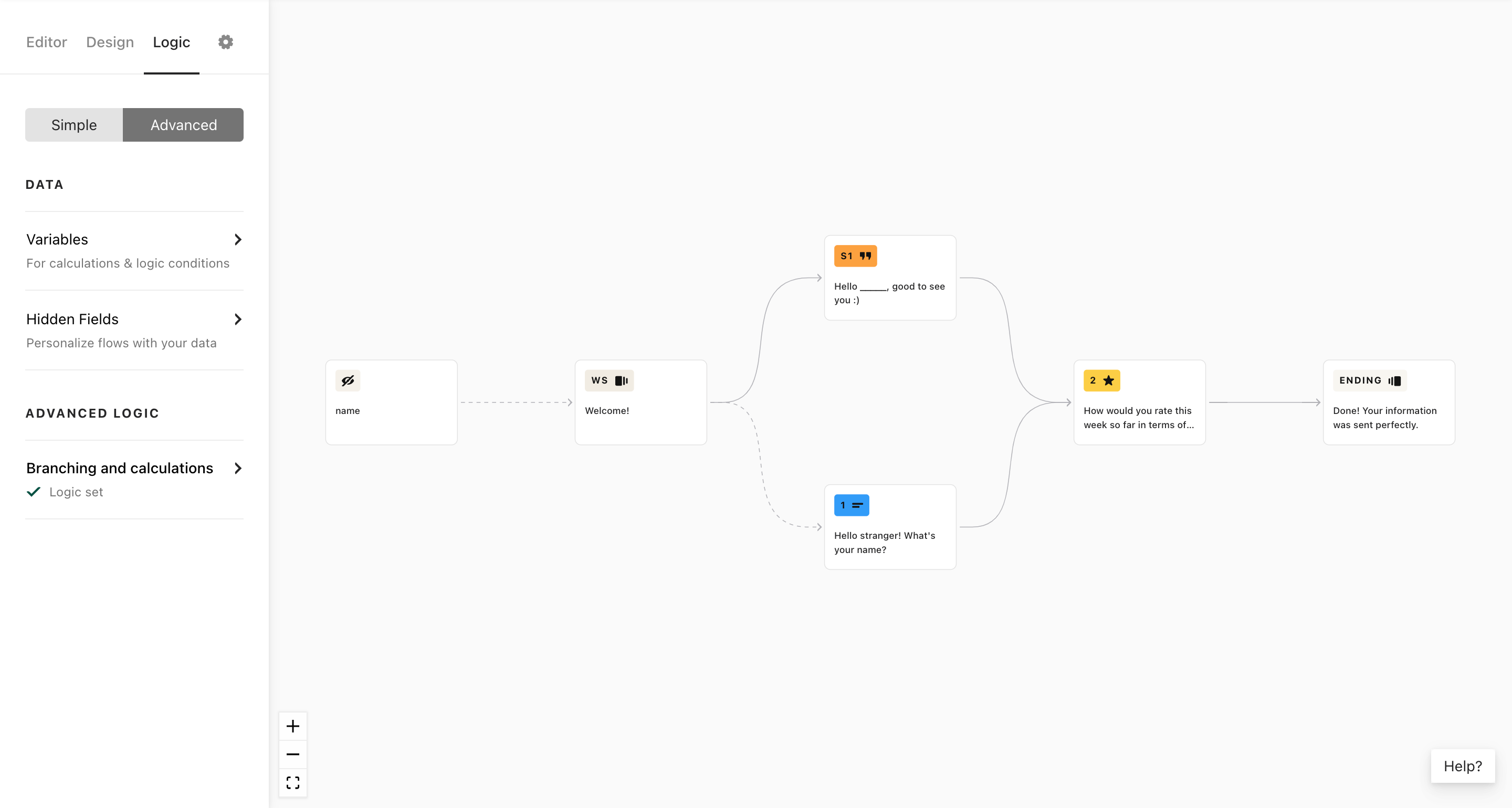

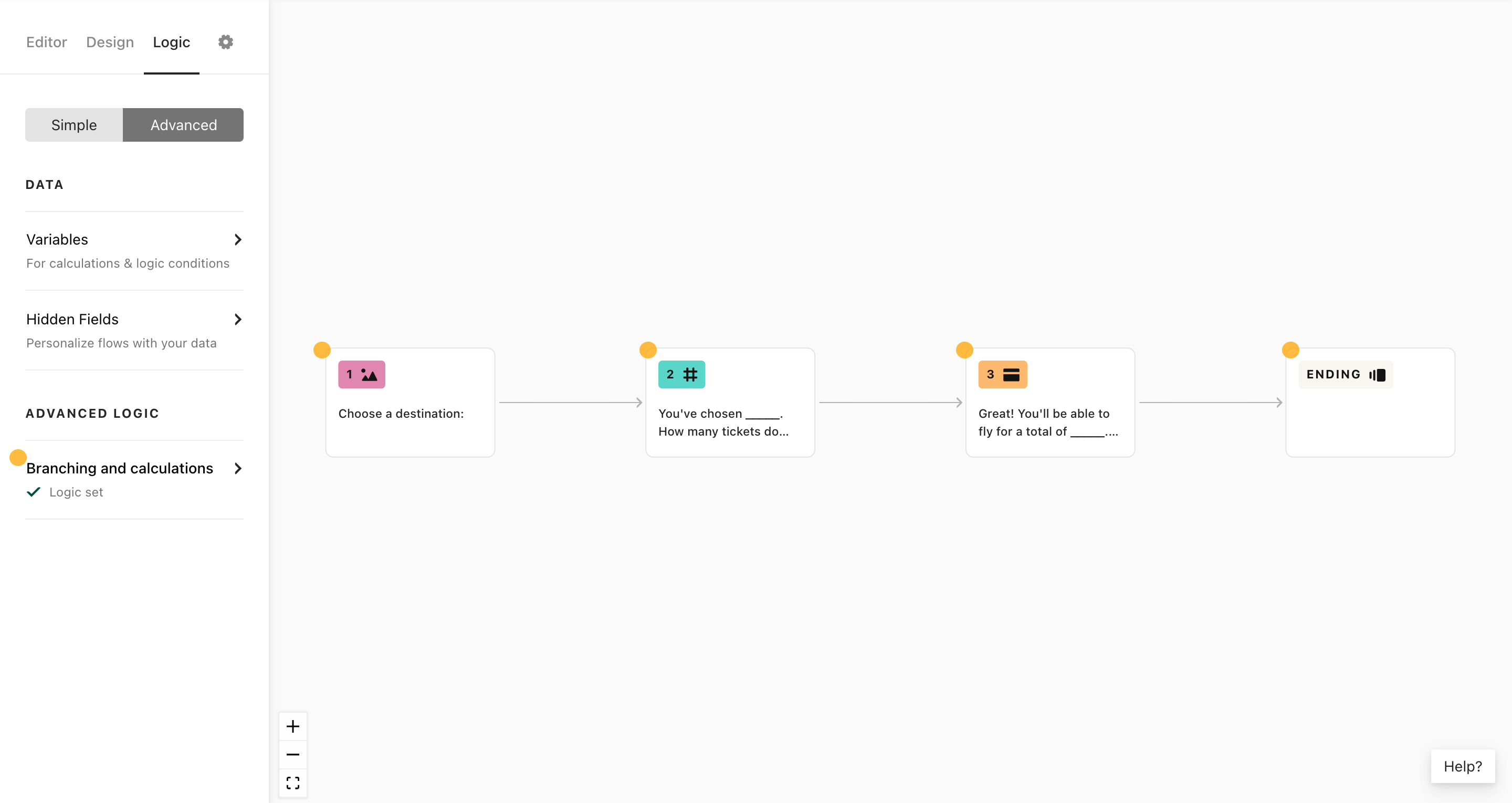

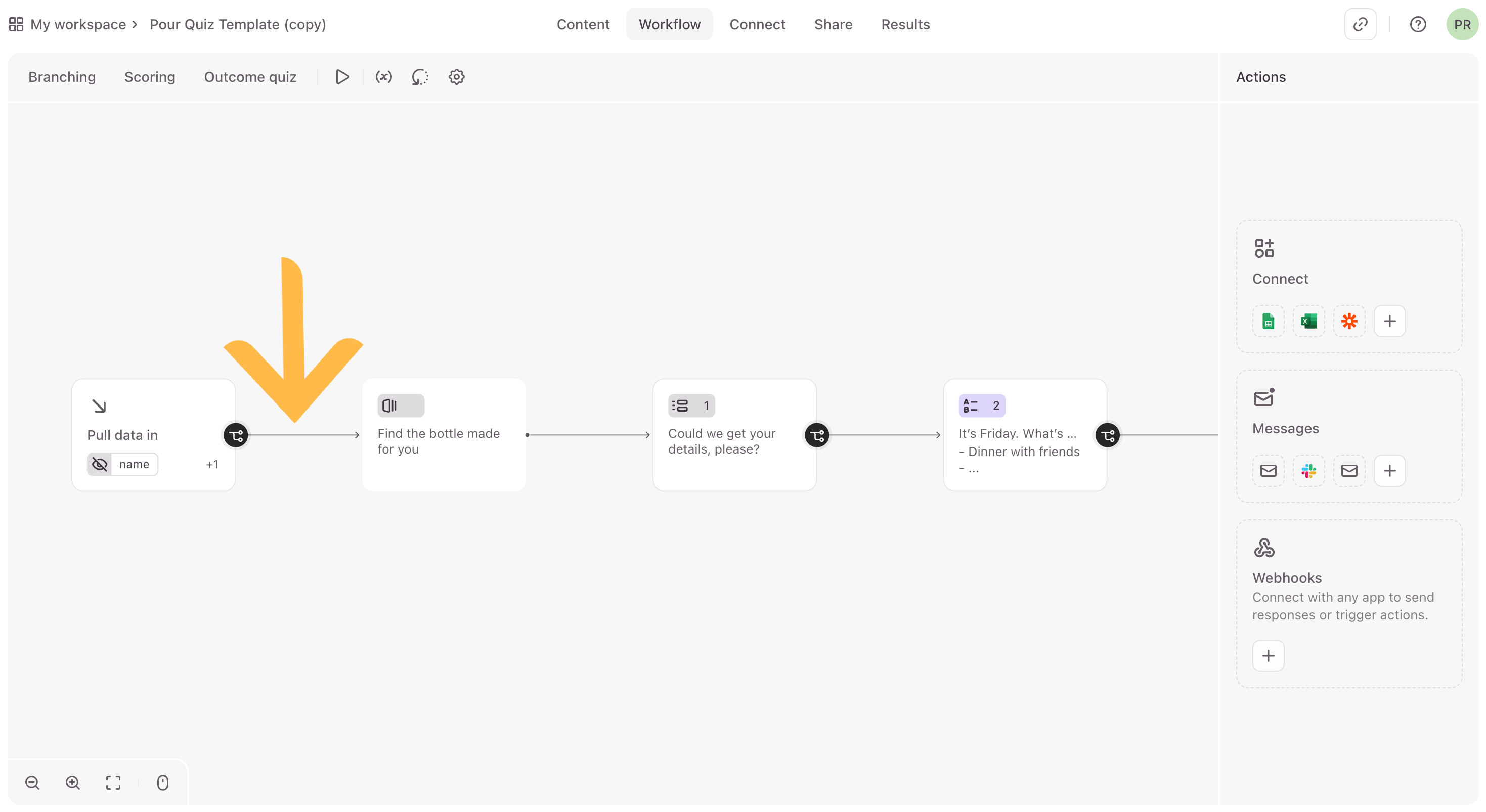

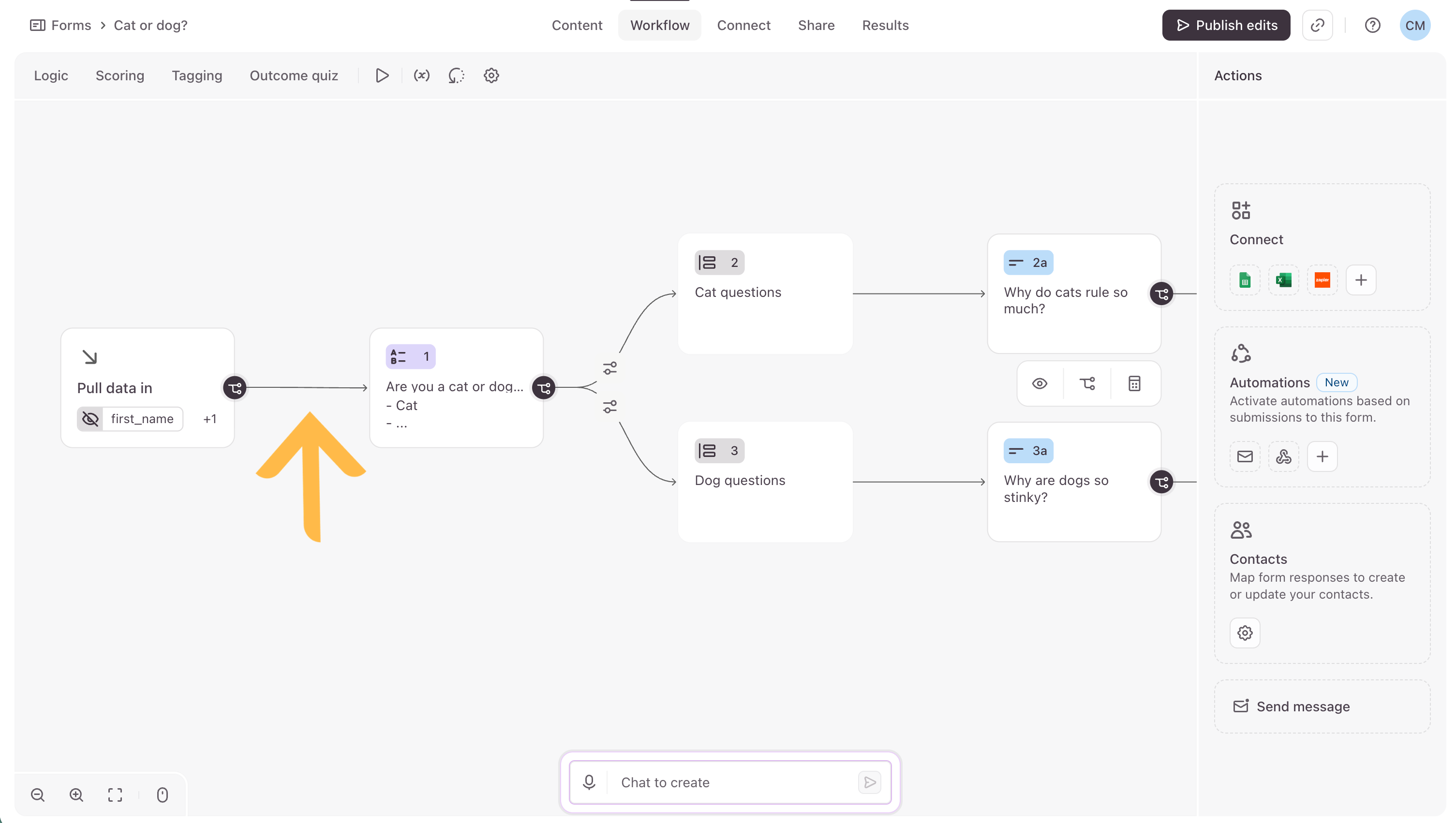

If you’ve added Logic to Hidden Fields, you’ll see a dotted line in your Logic Map. You can read this article to see how adding Logic to Hidden Fields works.

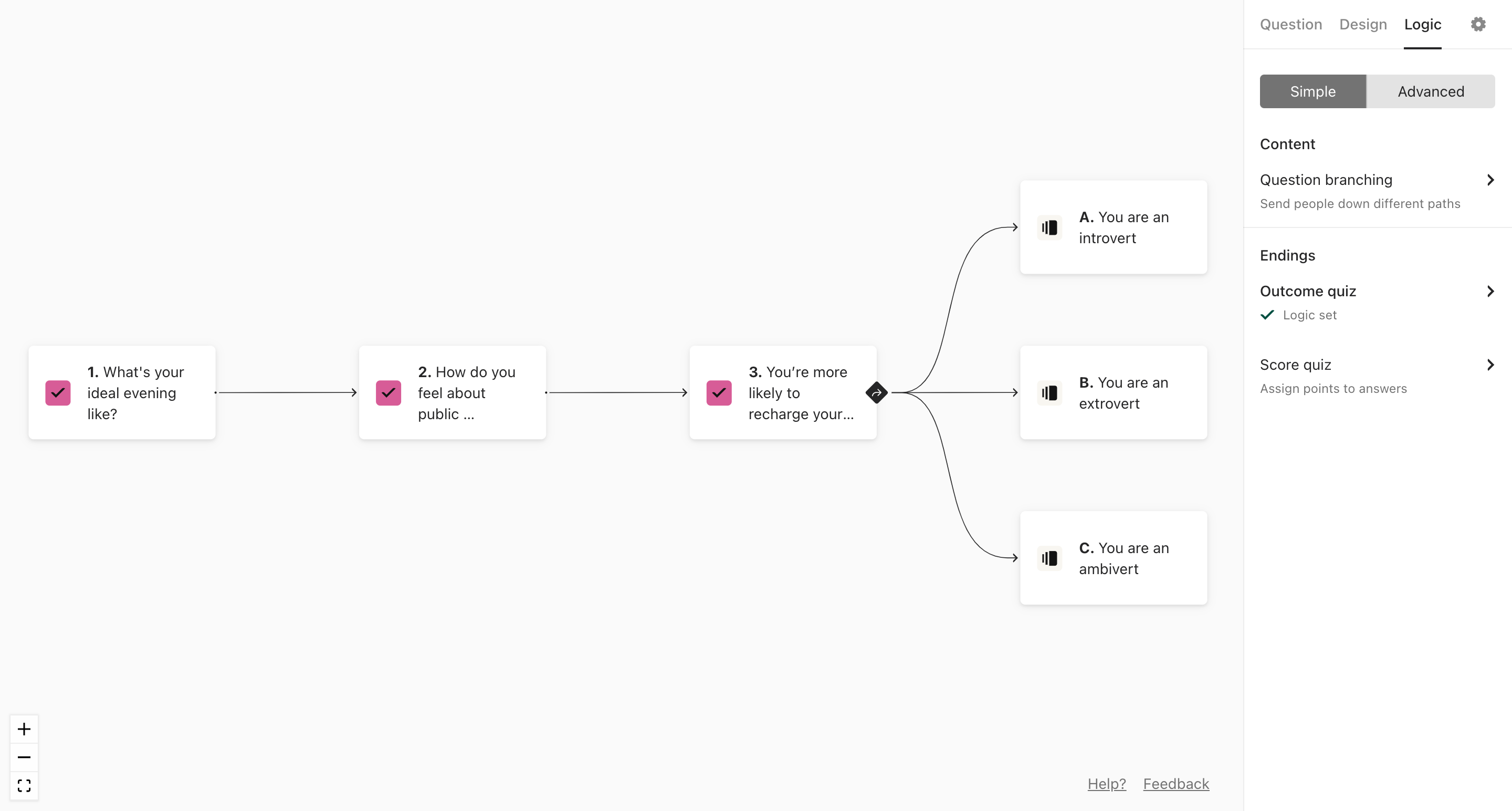

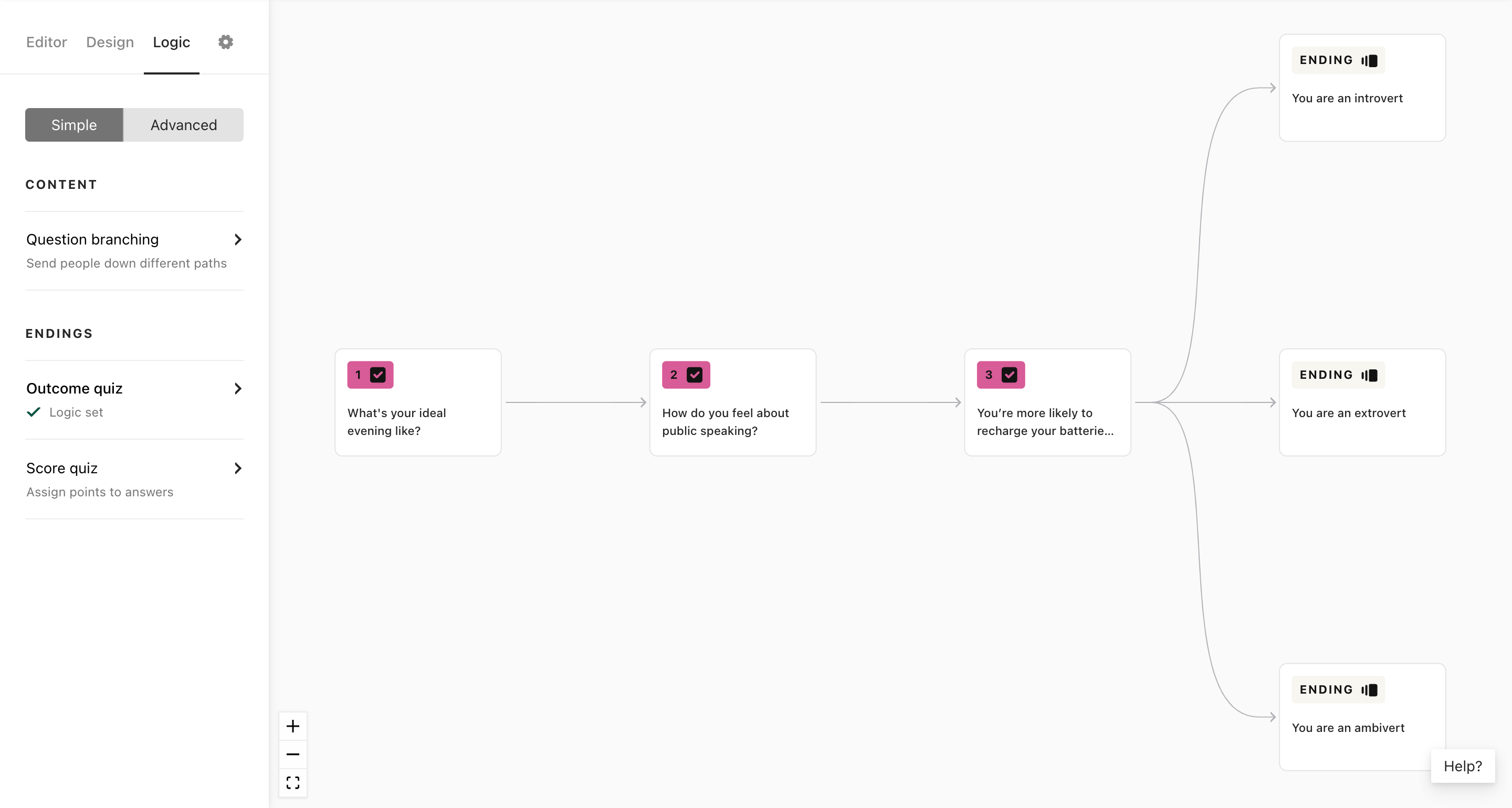

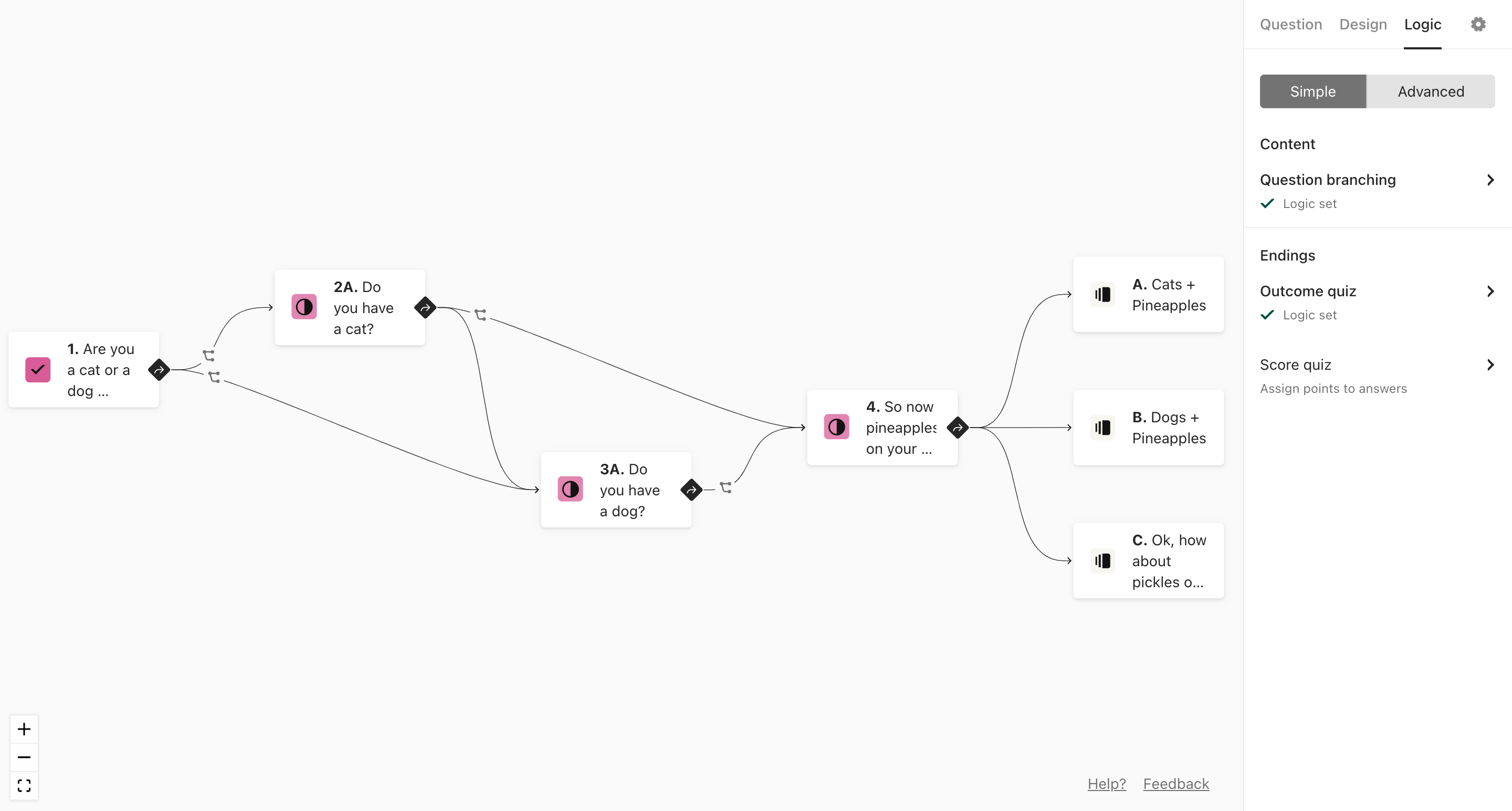

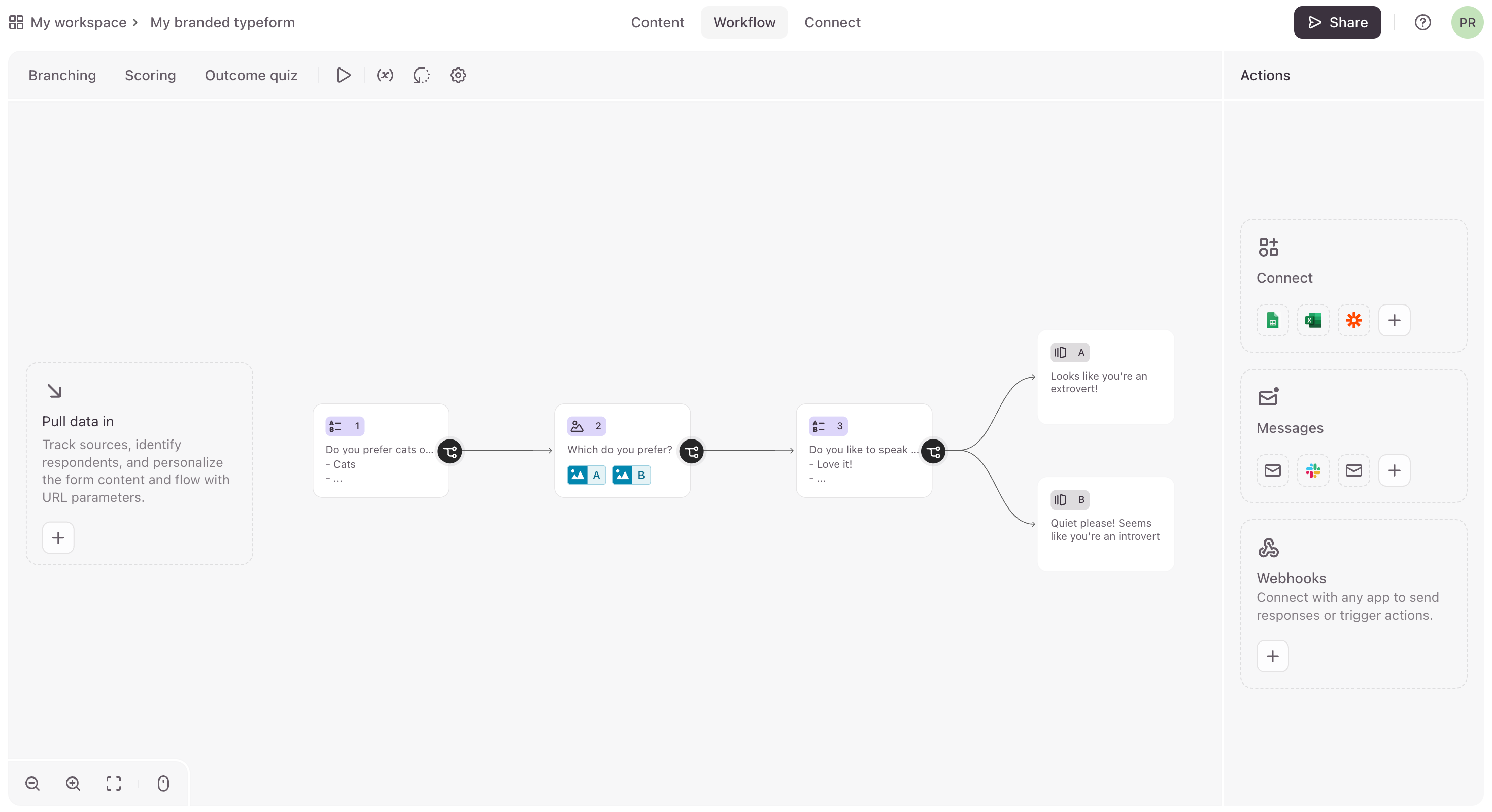

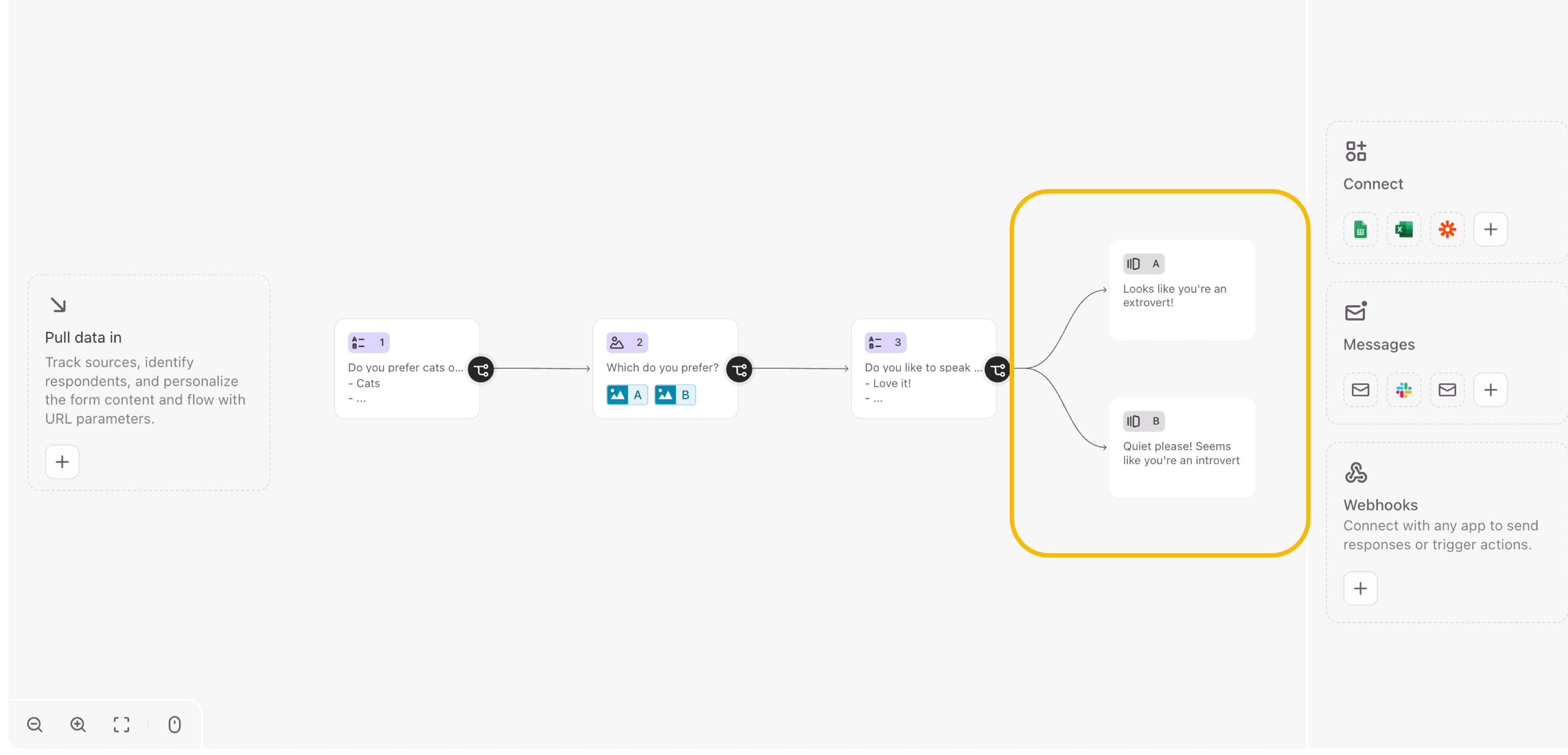

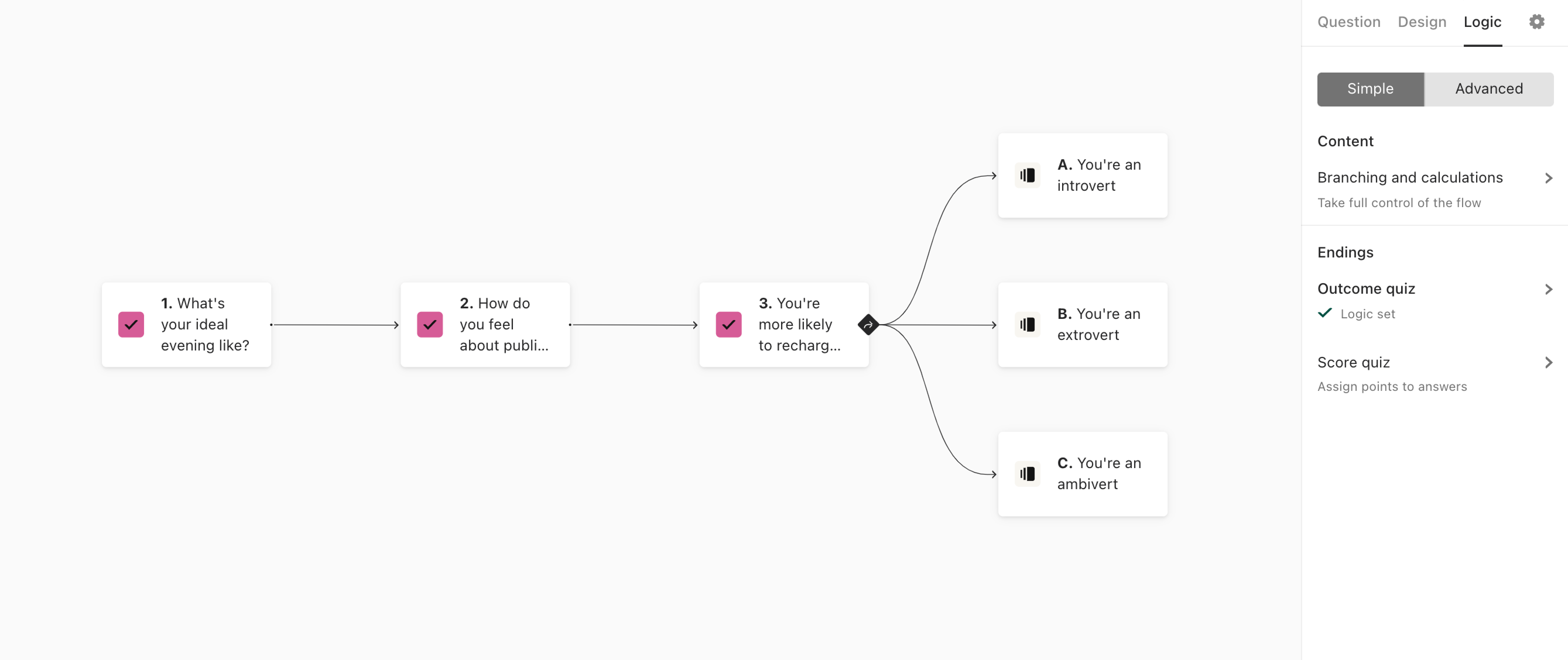

Here is an example of a simple Outcome quiz with different Endings:

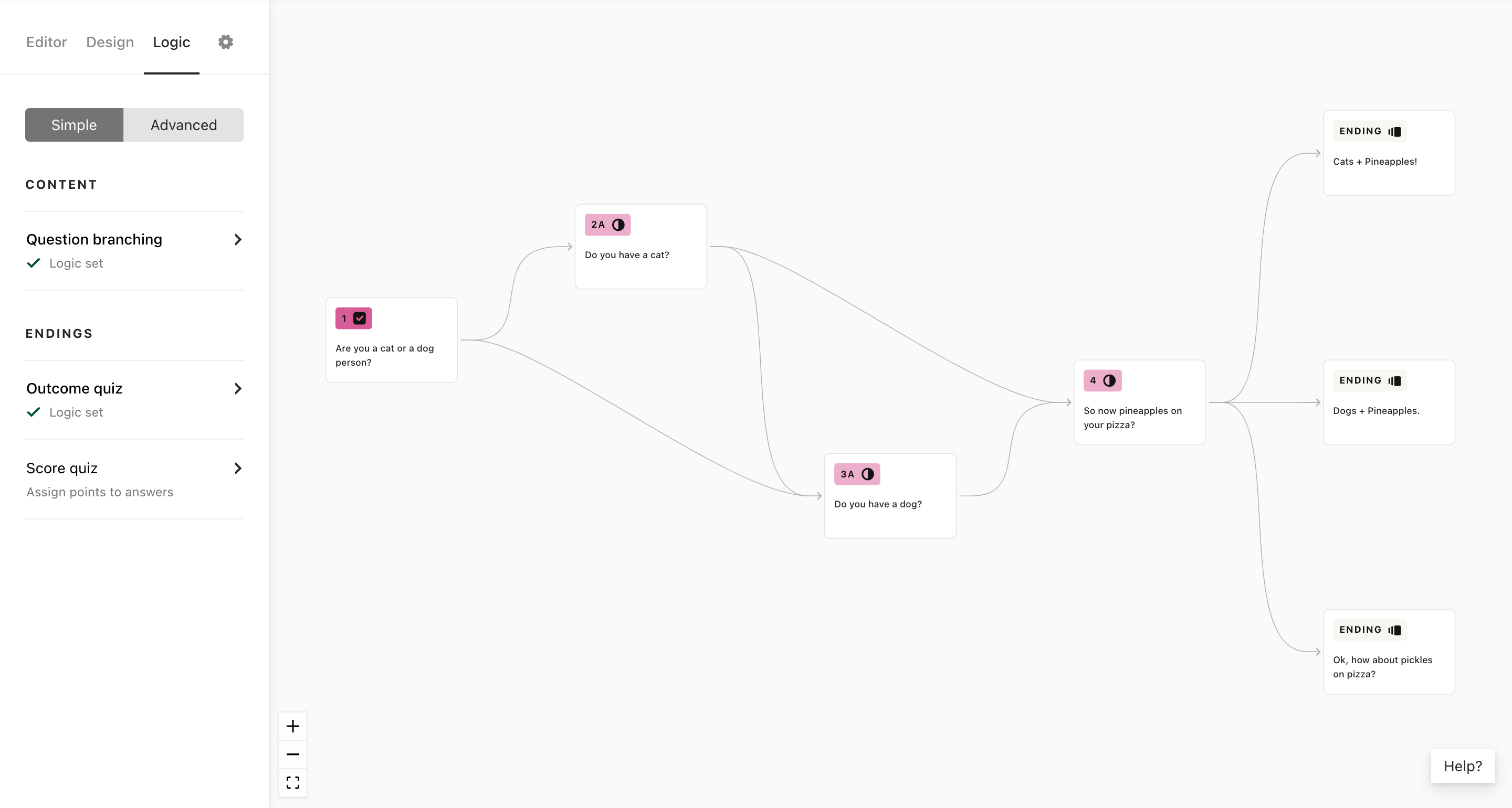

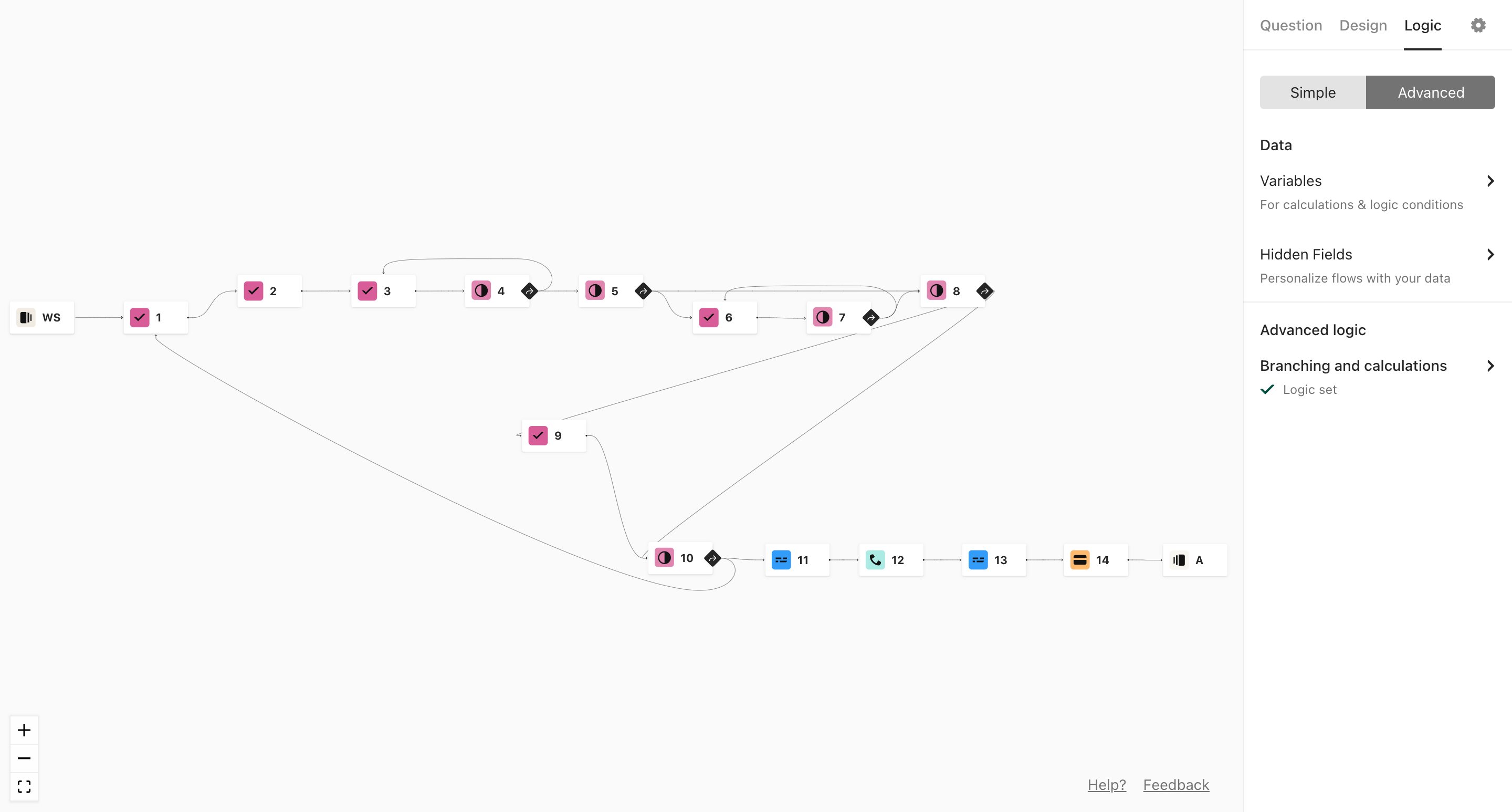

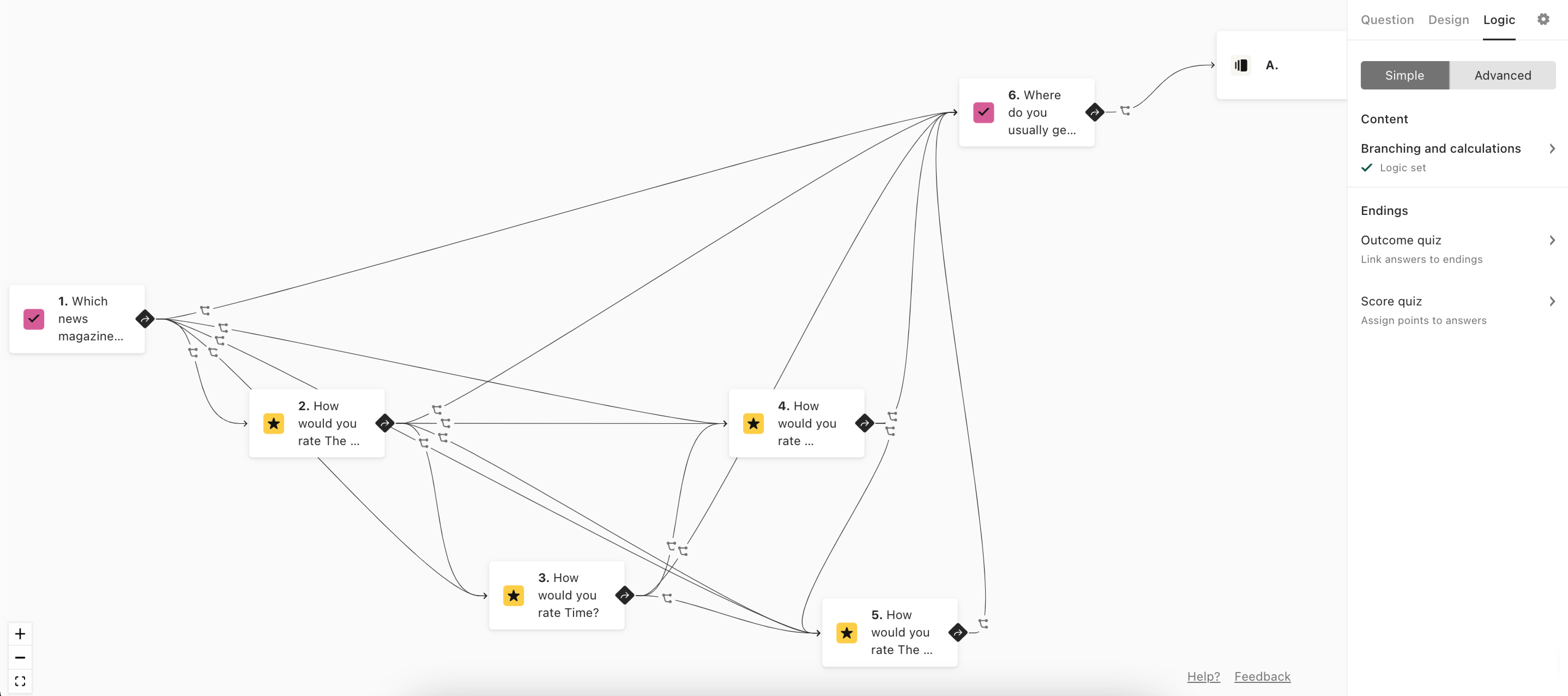

Here is a multi-branching typeform with multiple selection enabled. You can read more about how this typeform was built here.

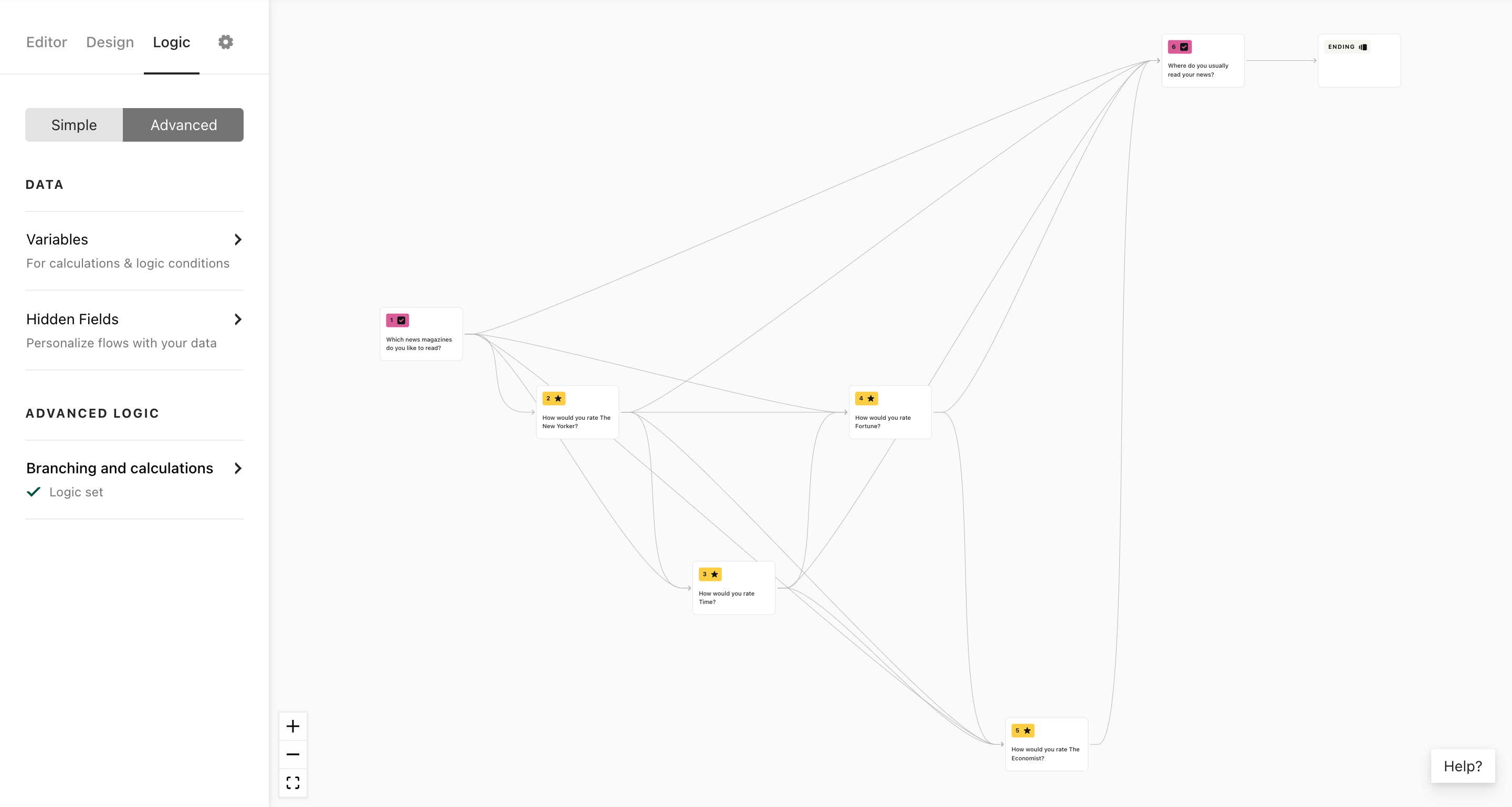

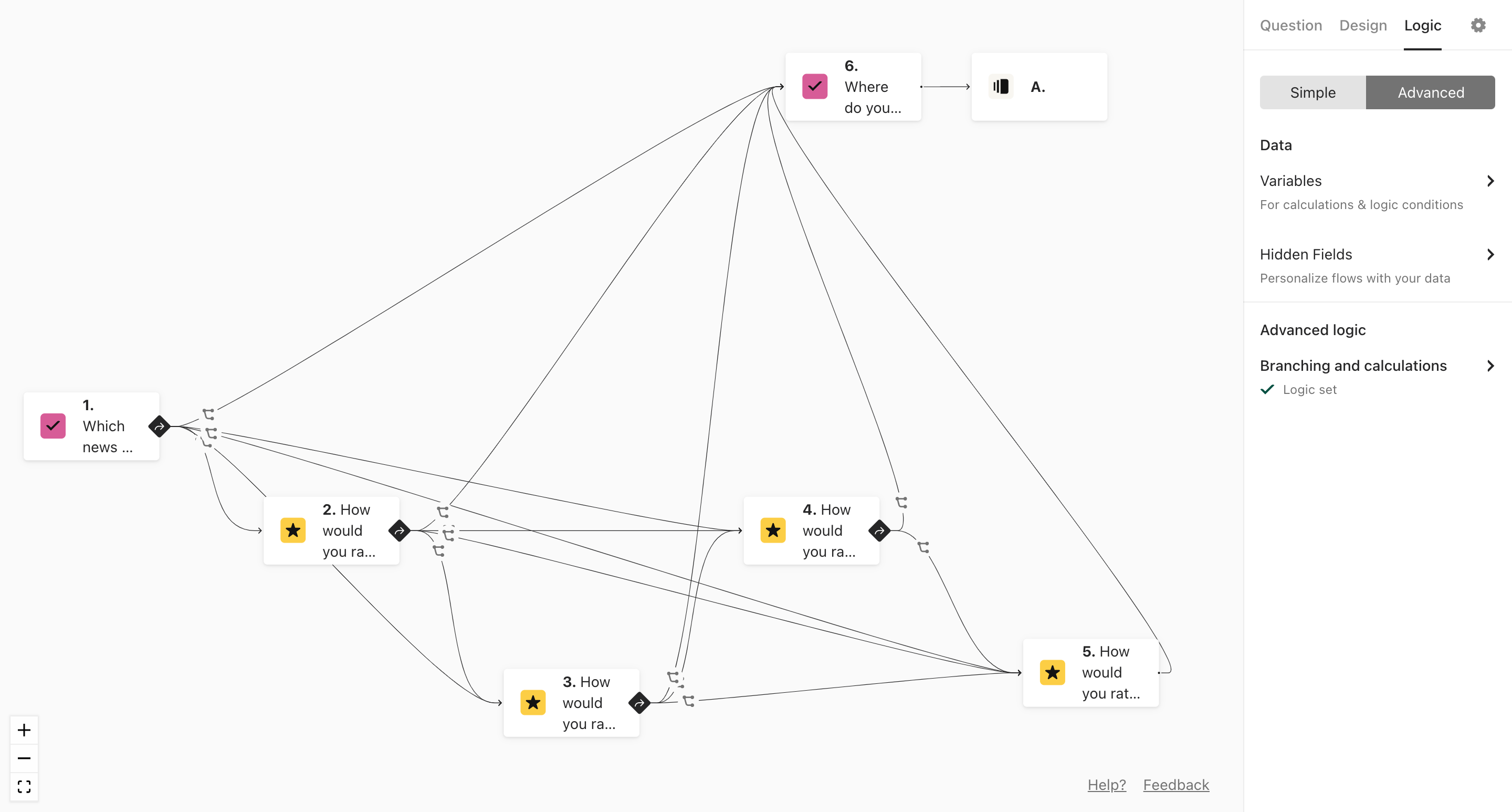

This is the Logic Map of an order form with Advanced Logic and Branching and calculations. You can read more about this typeform here.

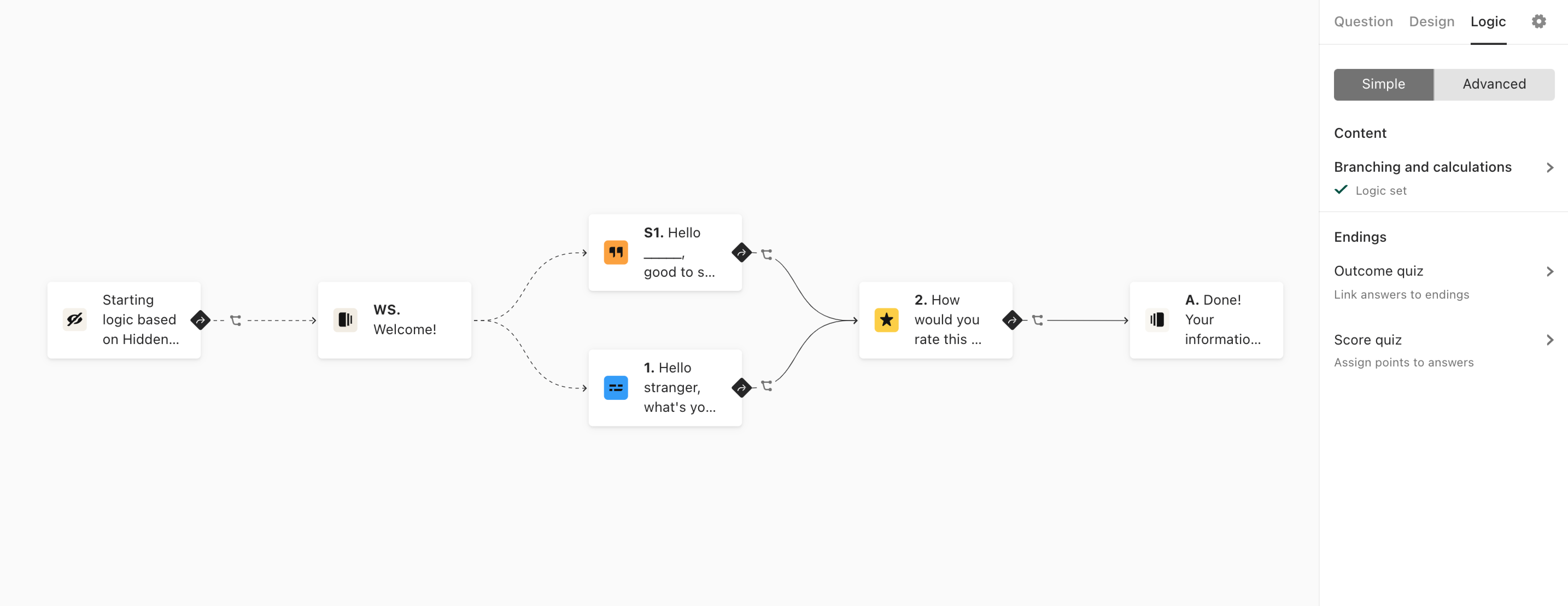

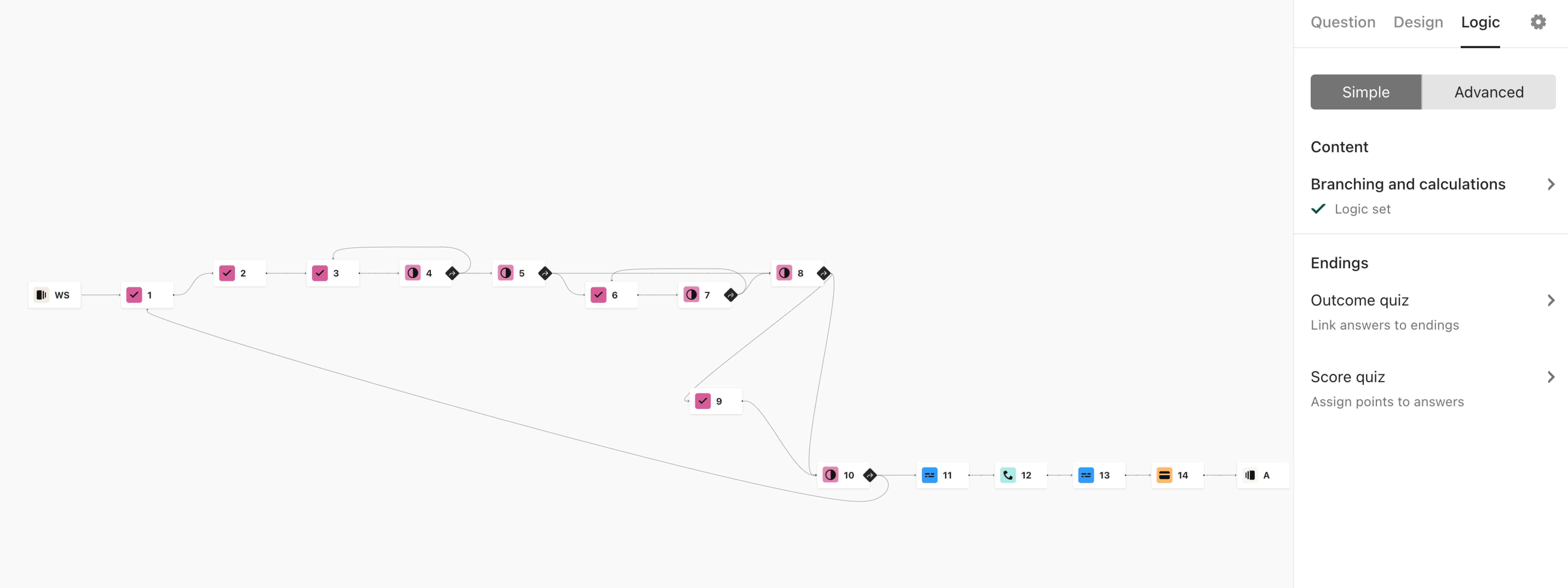

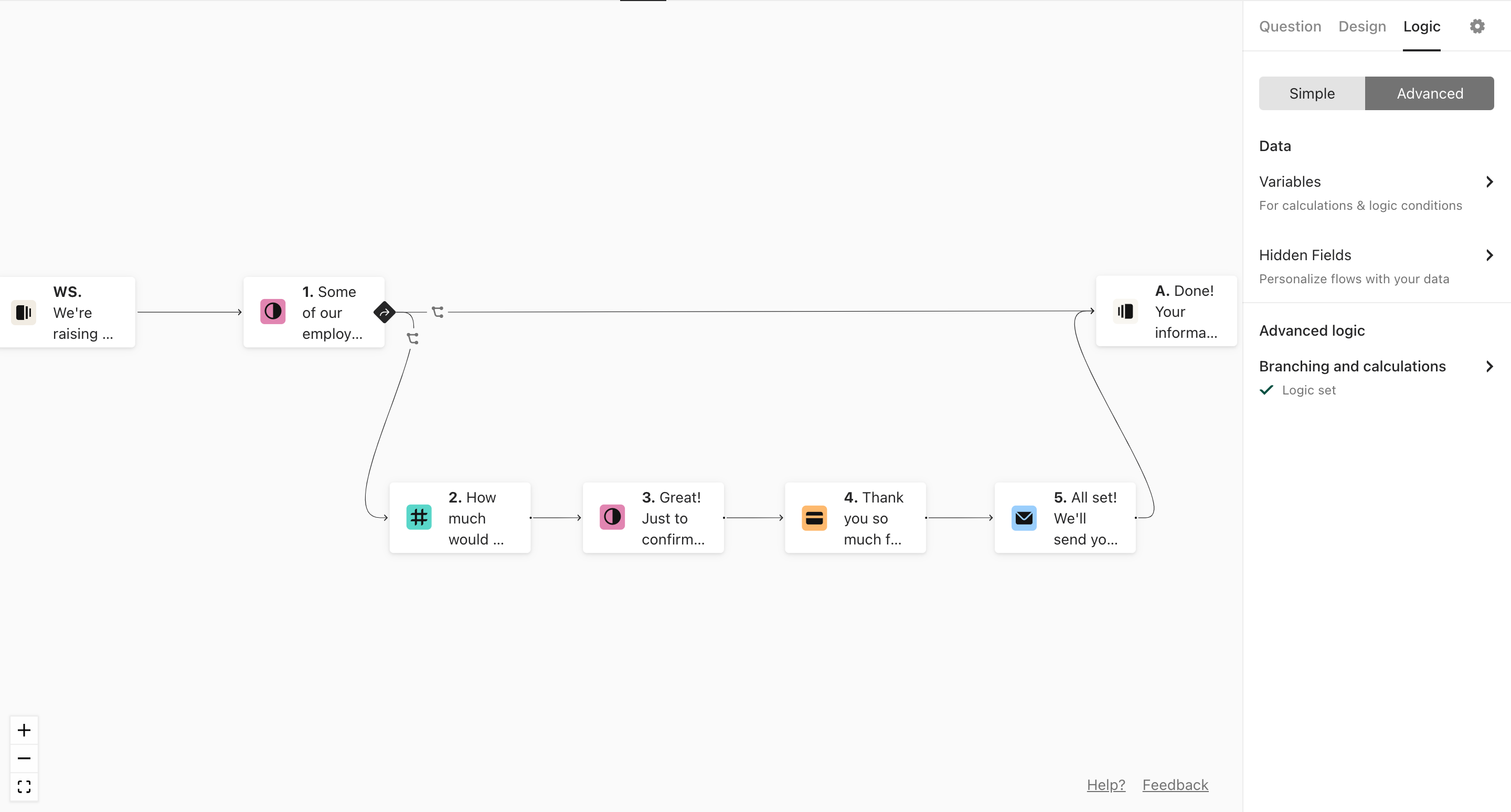

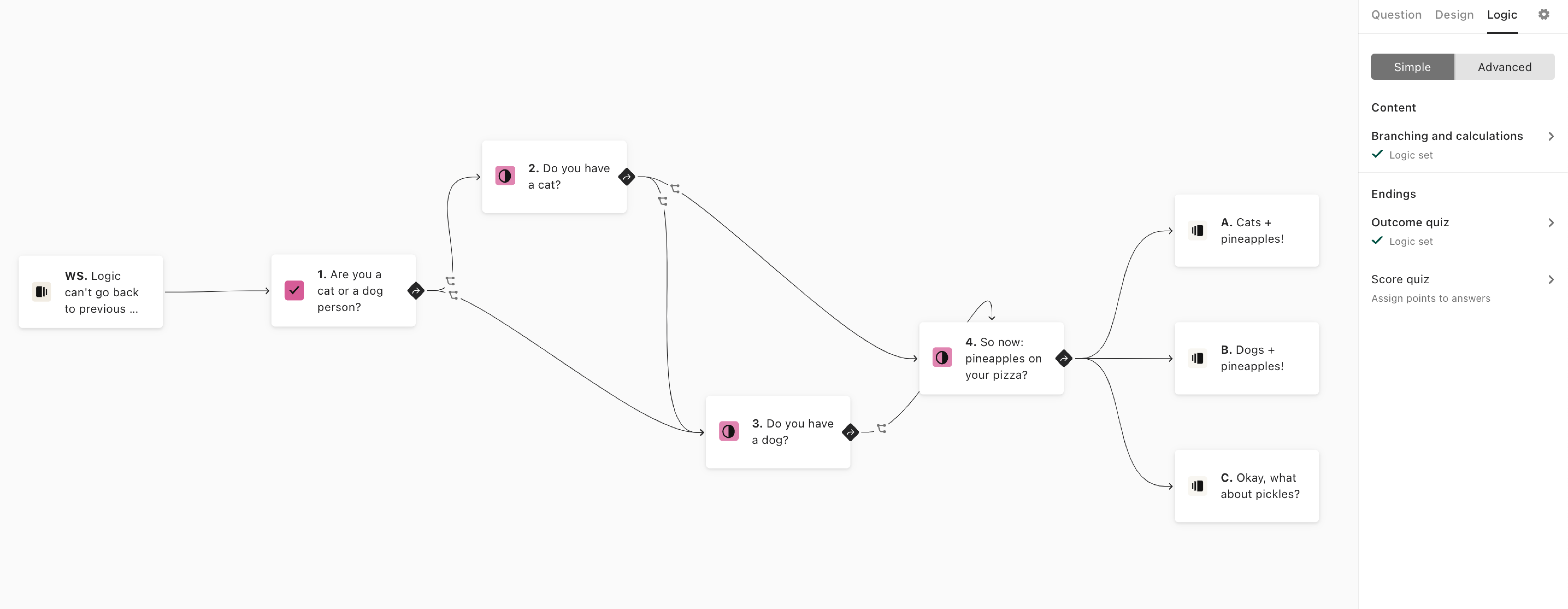

Here’s a Logic Map that combines different types of Simple Logic and uses both Question branching and Outcome quiz. Read how the typeform was created here.

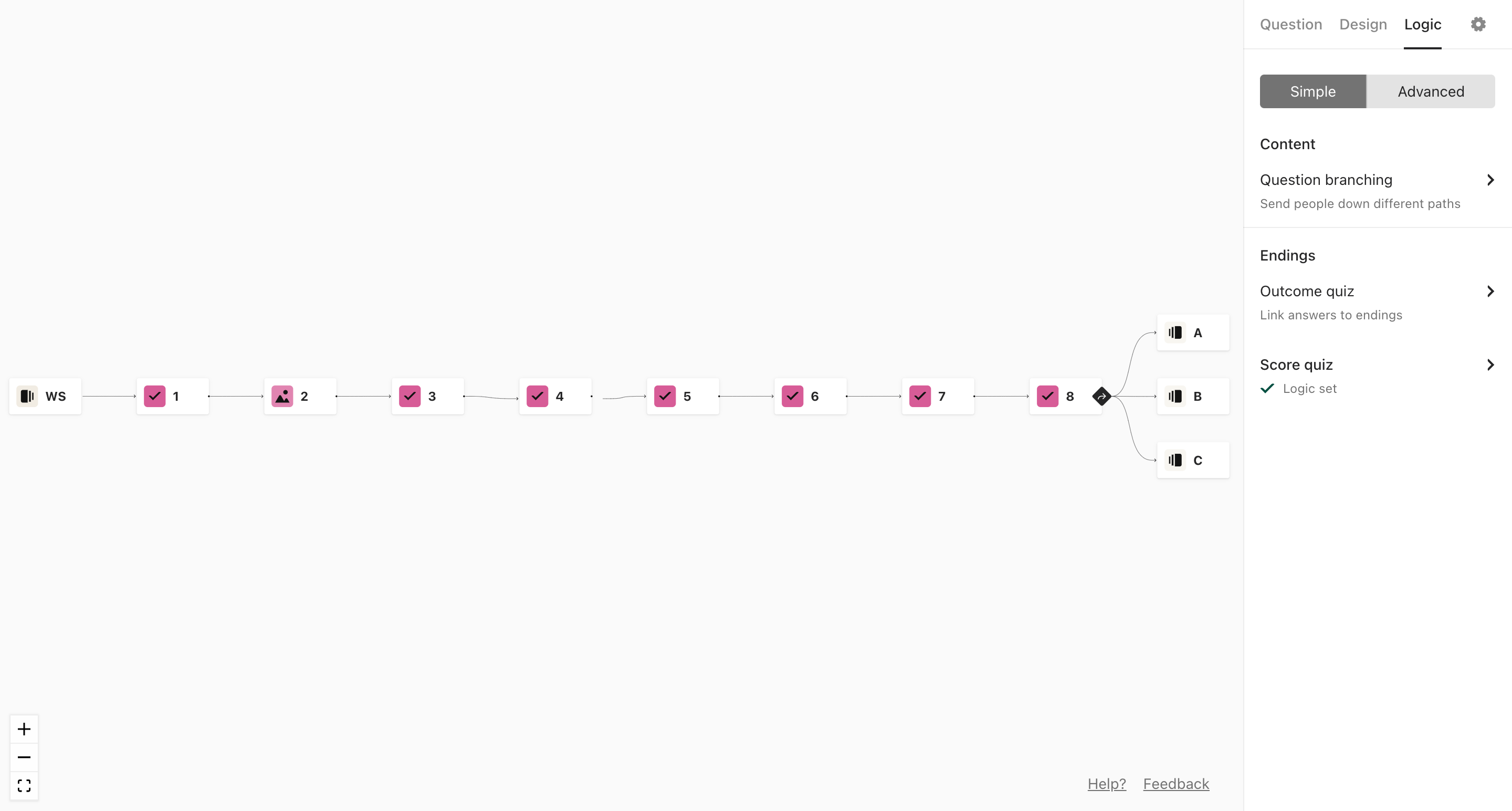

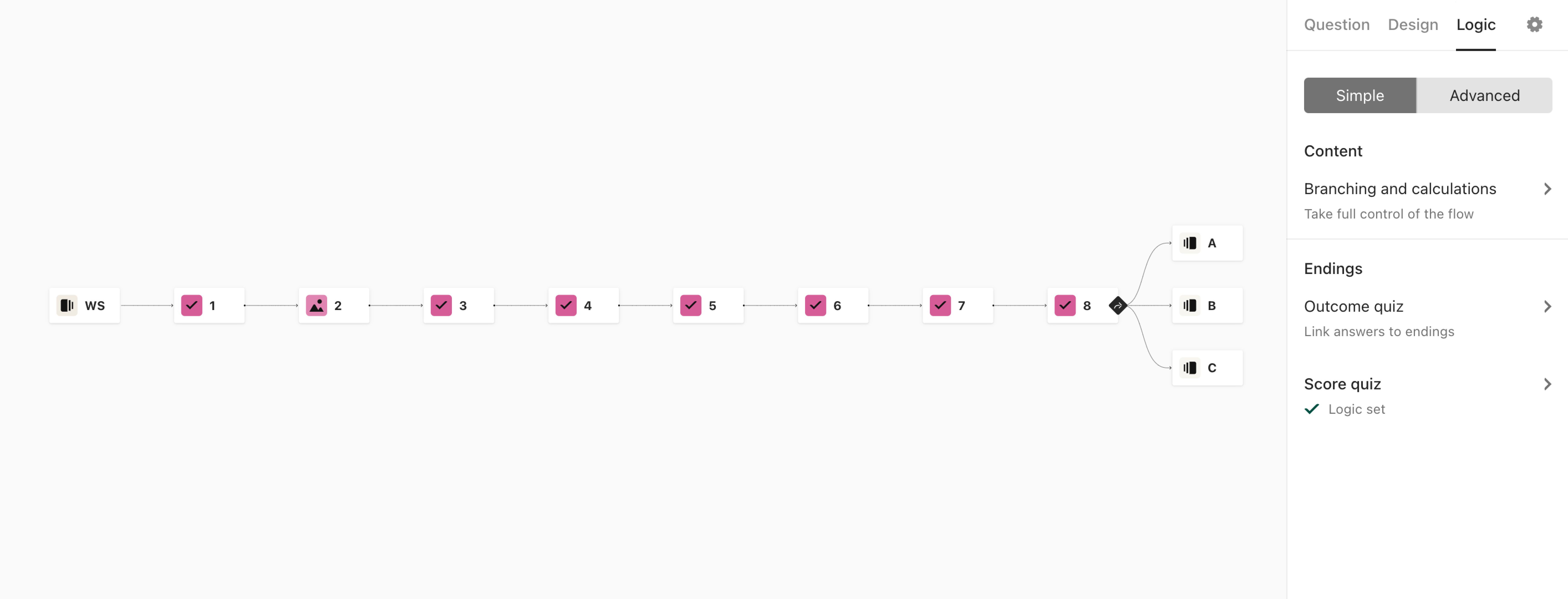

Here’s the Logic Map of a Score quiz with different Endings based on score ranges. Read how it was created here.
